1. Product Details of rfid jewelry tag
RF Protocol | ISO/IEC 18000-6C |
EPC Memory Size | 96-480 Bits |
User Memory | 512 bits |
Unique TID | 64 bits |
Access Password | 32 Bits |
Kill Password | 32 Bits |
Programming Cycles | 100,000 Write Cycles |
Worldwide Operating Frequencies | 840–960 MHz (US, Europe, Asia, & Japan) |
Integrated Circuit | Alien Higgs-3 |
Operating Limits | -40C to +70C / -40F to +158F |
Recommended Storage Conditions |
|
Storage Limits |
|
Inlay Size | 19 x 13 mm (.748 x .512 inches) |
Inlay Adhesive | General Purpose Permanent |
Overlay | TT Printable White Film Overlay |
Shelf Life | 2 Years at +77F (+25C) @ 40% RH |
Drop Resistance | Per ASTM D5276 |
RoHs | 2002/95/EC Compliant |

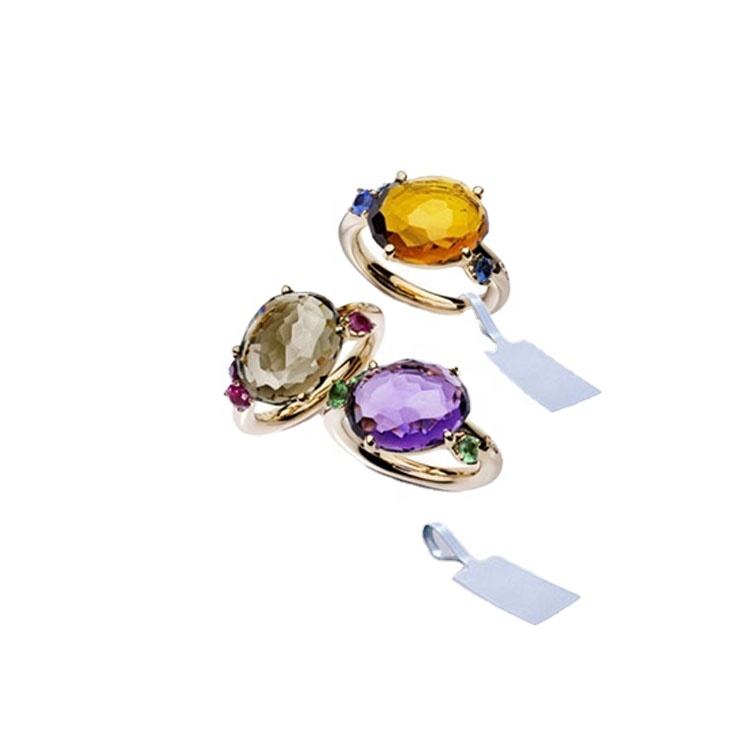

2. Product Pictures of rfid jewelry tag
3. Features:
Ultra compact size
Near-field coupling
Capable of converting to far field by coupling to conductive packaging
Exceptional performance
EPC Gen 2 (v1.2.0) compliant
ISO/IEC 18000-6C compliant
Worldwide RFID UHF operation (840-960MHz)
Higgs-3 IC with 800-bits of Nonvolatile Memory
32-bit TID
64-bit Unique TID
96-bit EPC Memory, extensible to 480-bits
512-bit User Memory
32-bit Access password
32-bit Kill password
Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication)
User Memory can be Block Perma-Locked
User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password
Supports all Mandatory and Optional Gen 2 commands including item level commands
Custom commands for high speed programming
Available in high-yield, high-capacity dry/wet inlay rolls for high volume converting processes
