Small ISO 7816 USB Type A Smart Chip Card Reader Writer with Swivel ACR39U-N1
ACR39 PocketMate II with USB Type A Connector represents an new paradigm.No larger than a USB stick, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides value and reliable functionality to meet your security needs.
ACR39U PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. It supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC) and SIPRNET Card. This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.
This USB Type-A connector version of ACR39U PocketMate II enables backwards compatibility and reversible use, along with all of the features mentioned for ACR39U series. ACR39U PocketMate II can easily be integrated in a computer-based or mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Solaris, and Mac OS®. In addition, ACR39U PocketMate II may now be used on mobile devices running on Android™ versions 3.1 and later.
With the evolution of ACR39U Pocketmate II to USB-Type A, there are now more opportunies for the next generation of your smart card solution.
Features
USB 2.0 Full Speed Interface
USB Type A Connector
Plug and Play – CCID support brings utmost mobility
Swivel Motion Design
Smart Card Reader:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
Supports CAC
Supports SIPRNET Card
Supports J-LIS Card
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short-Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
Physical Characteristics | |
---|---|
Dimensions (mm) | 58.0 mm (L) x 20.0 mm (W) x13.7mm (H) |
Weight (g) | 12g |
USB Interface | |
Protocol | USB CCID |
Connector Type | Standard Type A |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Contact Smart Card Interface | |
Number of Slots | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Others | CAC, PIV, SIPRNET, J-LIS Smart Cards |
Certifications/Compliance | |
Certifications/Compliance | EN 60950/IEC 60950 ISO 7816 USB Full Speed PC/SC CCID EMV Level 1 (Contact) J-LIS (Japan) PBOC TAA (US) VCCI (Japan) Microsoft® WHQL CE FCC WEEE RoHS 2 REACH |
Device Driver Operating System Support | |
Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |

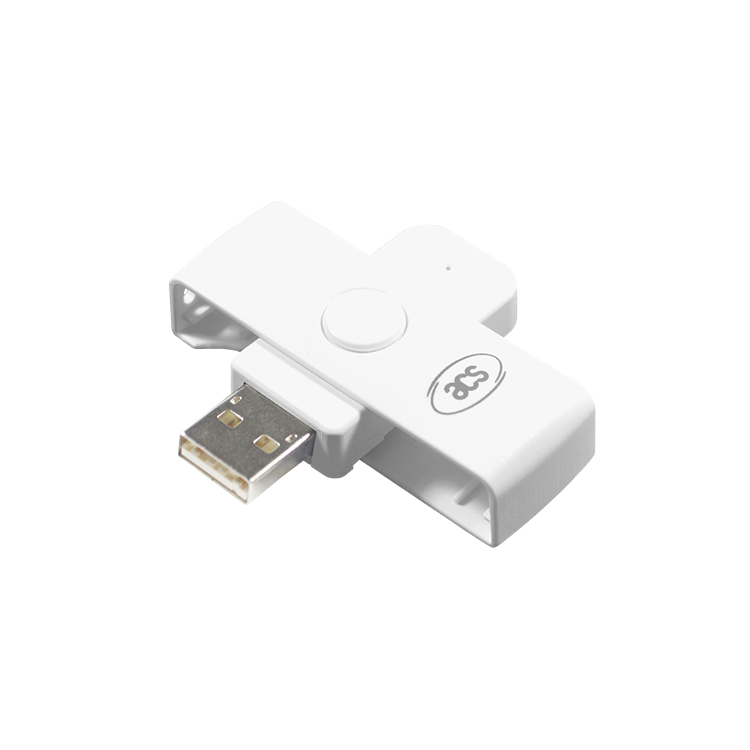

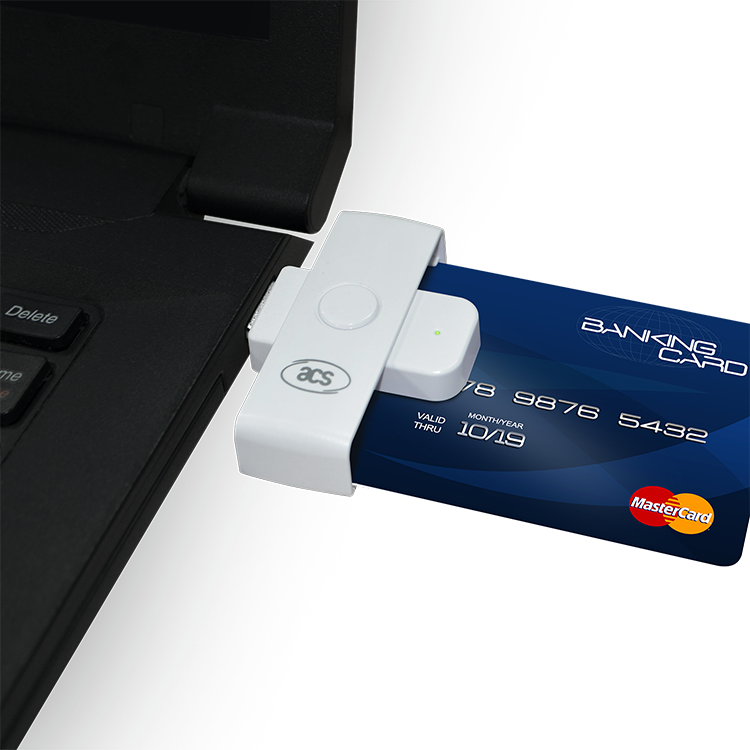

Pictures of NFC reader ACR39U-N1
