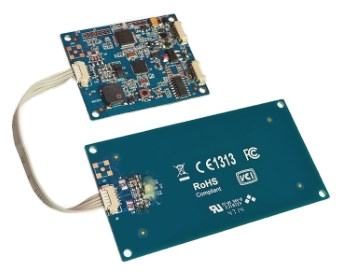

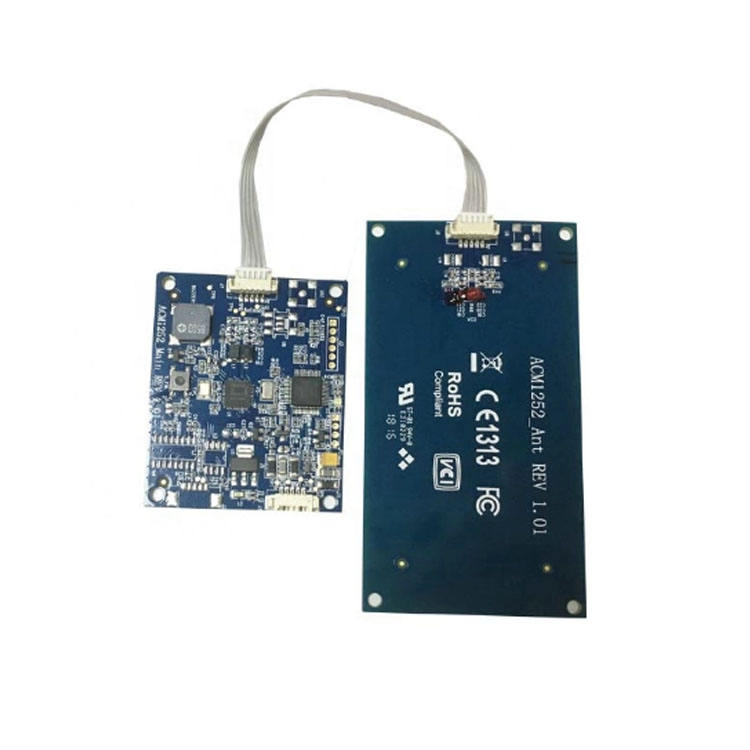

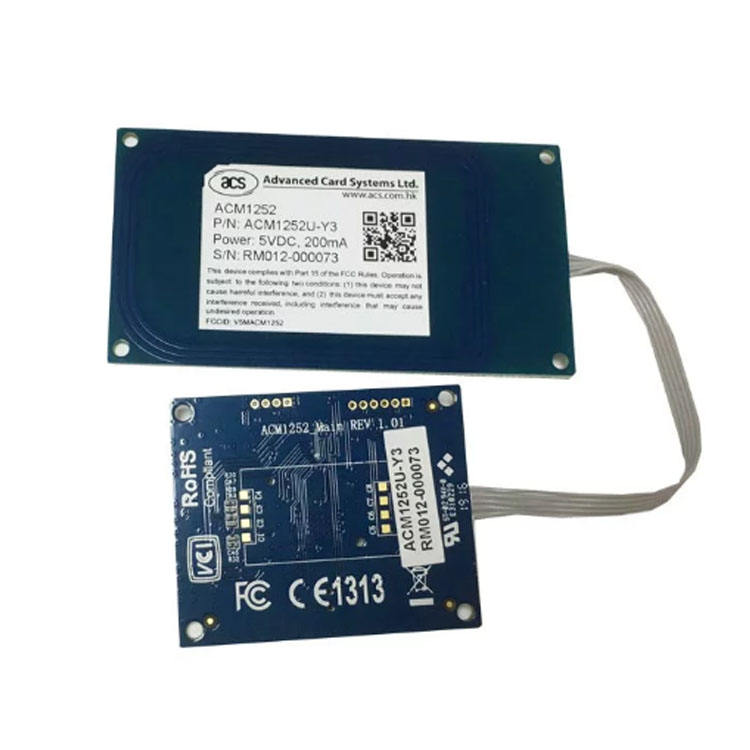

USB 13.56 MHz NFC Reader Module with Detachable Antenna Board ACM1252U-Y3

Availability:
Quantity:
Product Description

ACM1252U-Y3 13.56mhz RFID nfc rfid reader module with sam slot

Product Description

1.0 Introduction

The ACM1252U-Y3 USB NFC Reader Module with Detachable Antenna Board is developed based on the 13.56 MHz contactless technology. This smart card reader module is designed for fast and easy integration into embedded systems.

This reader module supports the three NFC modes (card reader/writer, card emulation, and peer-to-peer communication) and supports various cards such as ISO 14443 Type A and B, and FeliCa cards, and ISO 18092–compliant NFC tags. It also supports other NFC devices with access speeds of up to 424 Kbps and proximity operating distances of up to 50 mm (depending on tag type used).

The ACM1252U-Y3 comes with a detachable antenna and optional USB cable, which provide flexibility when integrating the module into embedded systems, such as kiosks and vending machines. It is the perfect front-end interface module to enable NFC transactions for applications involving integrated systems.

Upon request, ACM1251U-Y3 comes with a Class A, ISO 7816-compliant Secure Access Module (SAM) slot.

Features


    • User-controllable bi-color LED

    • User-controllable buzzer

    • Supports PC/SC

    • Supports CT-API (through wrapper on top of PC/SC)

    • Contactless Interface:

    • NFC Reader/Writer Mode

    • Peer-to-Peer Mode

    • Card Emulation Mode

    • Read/write speed up to 424 kbps

    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    • Supports ISO 14443 Type A and B, FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags

    • Built-in anti-collision feature (only 1 tag is accessed at any time)

    • NFC Support:

    • USB 2.0 Full Speed Interface

    • CCID Compliance

    • USB Firmware Upgradeability

    • Smart Card Reader:

    • Application Programming Interface:

    • Peripherals:

    1.0.  Typical Applications

    • e-Government

    • Banking & Payment

    • e-Healthcare

    • Access Control

    • Network Security

    • e-Purse & Loyalty

    • Transportation

    • Smart Poster

    • P2P Communication



    Physical Characteristics of NFC module ACM1252U-Y3
    Dimensions (mm) Main Board: 55.0 mm (L) x 45.0 mm (W) x 5.1 mm (H)
    Antenna Board: 91.0 mm (L) x 49.5 mm (W) x 5.1 mm (H)
    Weight (g) 26.6 g
    USB Interface of NFC module ACM1252U-Y3
    Protocol USB CCID
    Connector Type Standard Type A
    Power Source From USB port
    Speed USB Full Speed (12 Mbps)
    Cable Length 1.0 m, Detachable (Optional)
    Contactless Smart Card Interface of NFC module ACM1252U-Y3
    Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
    Protocol ISO14443-4 Compliant Cards, T=CL
    ISO 18092, NFC Tags
    FeliCa
    Antenna 77 mm x 49.5 mm
    SAM Card Interface of NFC module ACM1252U-Y3
    Number of Slots 1 (Optional)
    Built-in Peripherals
    LED 1 bi-color: Red and Green
    Buzzer Monotone
    Other Features of NFC module ACM1252U-Y3
    Firmware Upgrade Supported
    Certifications/Compliance of NFC module ACM1252U-Y3
    Certifications/Compliance EN 60950/IEC 60950
    ISO 7816 (SAM Slot)
    ISO 14443
    ISO 18092
    USB Full Speed
    PC/SC
    CCID
    VCCI (Japan)
    CE
    FCC
    RoHS 2
    REACH
    Microsoft® WHQL
    Device Driver Operating System Support
    Device Driver Operating System Support Windows®
    Linux®
    MAC OS®
    Solaris
    Android™
