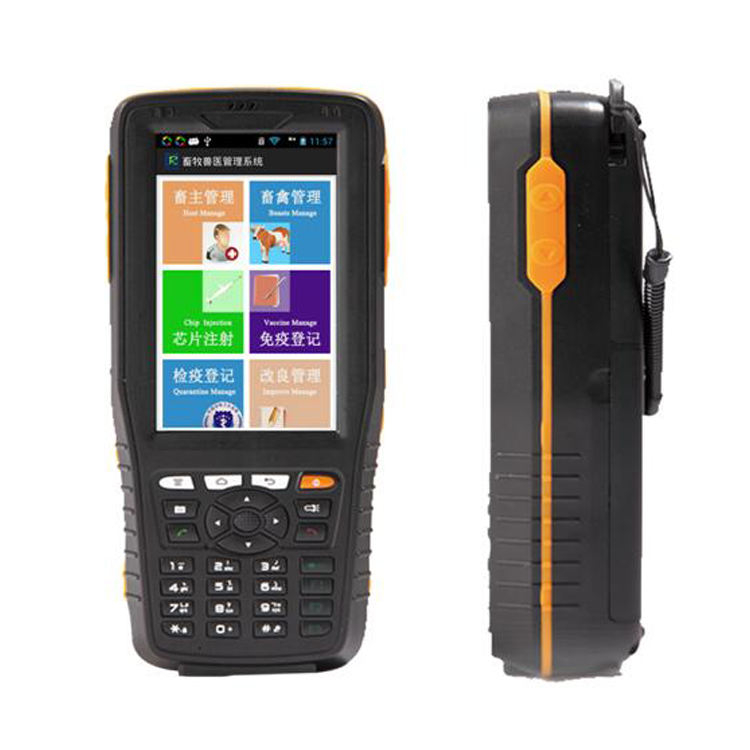

UHF Handheld Android 7.0 POS Terminal, Support 2D Barcode Scanning with Touch Screen 4G

Availability:
Quantity:
Product Description

Wiress 7.0 Android Mobile Computer 4G High Speed Handheld UHF RFID Reader


Features

Extremely Stable Performance

Android 7.0 OS with memory of 2GB RAM/16GB ROM can provide the highly standard experience

High Speed Data Communication

Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment;

Rugged Ergonomic, Over-molding Design with Extremely Stable Hardware Display

Over-molding, ergonomic hardware design and 5.0 inch tough Gorilla Glass 3 9H can satisfy most of the tough environment from different fields;

High Efficiency Operating Style

Mounted pistol grip with built-in battery of 8100mAh can ensure the high efficiency in outdoors environments;

High Accuracy and Long Reading Distance

Optional ThingMagic/R2000 UHF Reader can guarantee the high reading accuracy and long reading distance;

Highly Customized Structure

‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF; HF+LF;

Quick-Charging

Quick-charging technology can provide the most efficient experience;

Perfect Service

Professional and skillful service involving the whole life cycle can guarantee the stability.

SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

170mm(H)x85mm(W)x23mm(D)±2 mm

Weight

Net Weight :480g (including battery&wrist strap)

Display

5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1280)touch screen with backlight

Backlight

LED backlight

Keypads

3 TP keys, 6 function keys, 4 side buttons

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 8100mAh

PERFORMANCE CHARACTERSTICS

CPU

Quad A53 1.3GHz quad-core

Operating System

Android 7.0

Storage

2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

USER ENVIRONMENT

Operating Temp.

-20 to 50

Storage Temp.

-20 to 70

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT

SDK

Handheld-Wireless Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7,17, 20;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN

2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n

GPS

GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER

BARCODE READER(OPTIONAL)

1D barcode

1D laser engine

Symbol SE955

Symbologies

All major 1D barcodes

2D barcode

2D CMOS Imager

Honeywell N6603/Newland EM3396

Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA

Resolution

8.0 megapixel

Lens

Auto-focus with LED flash

RFID READER(OPTIONAL)

RFID LF

Frequency

125KHz/134.2KHz(FDX-B/HDX)

Protocol

ISO 11784&11785

R/W Range

2cm to 10 cm

RFID HF/NFC

Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

RFID UHF

Frequency

865~868MHz or 920~925MHz

Protocol

EPC C1 GEN2/ISO 18000-6C

Antenna Gain

Circular antenna(3dBi)

R/W Range

Impinj R2000: 5m to 7(tags and environment dependent)

ThingMagic M6E Micro: 3m to 4 m(tags and environment dependent)

FINGERPRINT READER(OPTIONAL)

Sensor

TCS1xx

Sensor type

Capacitive, area sensor

Resolution

508 DPI

Performance

FRR<0.008%, FAR<0.005%

Capacity

1000

PSAM SECURITY(OPTIONAL)

Protocol

ISO 7816

Baudrate

9600, 19200, 38400,43000, 56000, 57600, 115200

Slot

2 slots(maximum)

ACCESSORIES

Standard

1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable

Optional

Cradle
