Product Description

ACR122T, the world’s first NFC card reader compliant with the CCID standard, is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 NFC standard. It supports not only ISO 14443 Type A and B cards but also FeliCa and NFC tags.

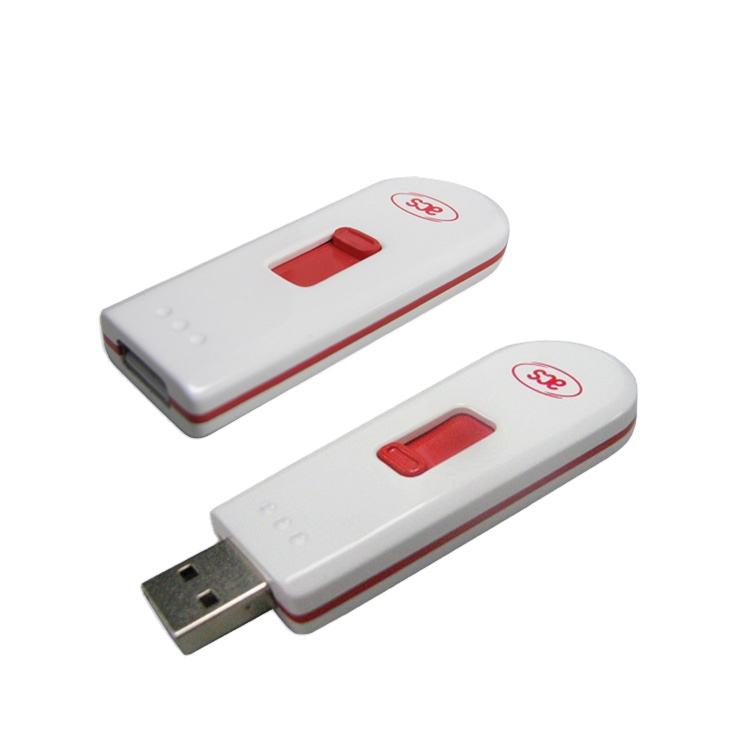

ACR122U’s token version, ACR122T, broadens the reader’s usage because of its compact size and great portability. You can bring the token along in public areas – a coffee shop, for example – or use it at home to securely log on to your notebook, load your e-Purse, check your balance, and pay for a product or service you ordered.



1.0. Features

· CCID-compliant

· PC/SC-compliant

· Read/write speed up to 424 kbps

· Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)

· Supports ISO 14443 Type A and B, , FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

· Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes

· Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)

· Extractable USB plug

· USB PnP

· Bi-color LED

· Compact size: 75 mm (L) x 30 mm (W) x 9.9 mm (H)

· Light Weight: 15 g

1.0. Typical Applications

· e-Government

· e-Banking and e-Payment

· e-Healthcare

· Transportation

· Network Security

· Access Control

· Loyalty Program

1.0. Technical Specifications



Specification:

Dimensions	75.0 mm (L) x 30.0 mm (W) x 12.7 mm (H)
Compliance / Certifications	·         ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI,  RoHS 2,  USB Full Speed, Microsoft® WHQL
Interface	USB Full-Speed
Operating Distance	Up to 30 mm (depends on the tag type)
Supply Voltage	Regulated 5 V DC
Supply Current	200 mA (operating); 50 mA (stand-by); 100 mA (normal)
Operating Temperature	0 - 50 °C
Operating Frequency	13.56 MHz
Smart Card Interface Support	·         ISO14443 Type A & B ·         FeliCa ·         4 types of NFC (ISO/IEC18092) tags Etc
Operating System Support	·         Windows® ·         Win CE 5.0 and 6.0 ·         Linux® ·         Mac OS® ·         Android™ 3.1 and above
