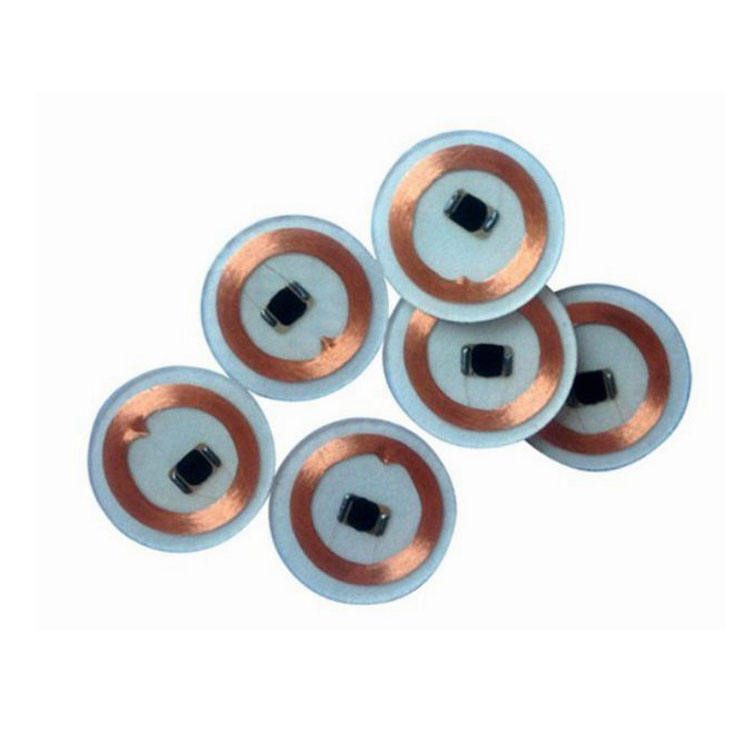

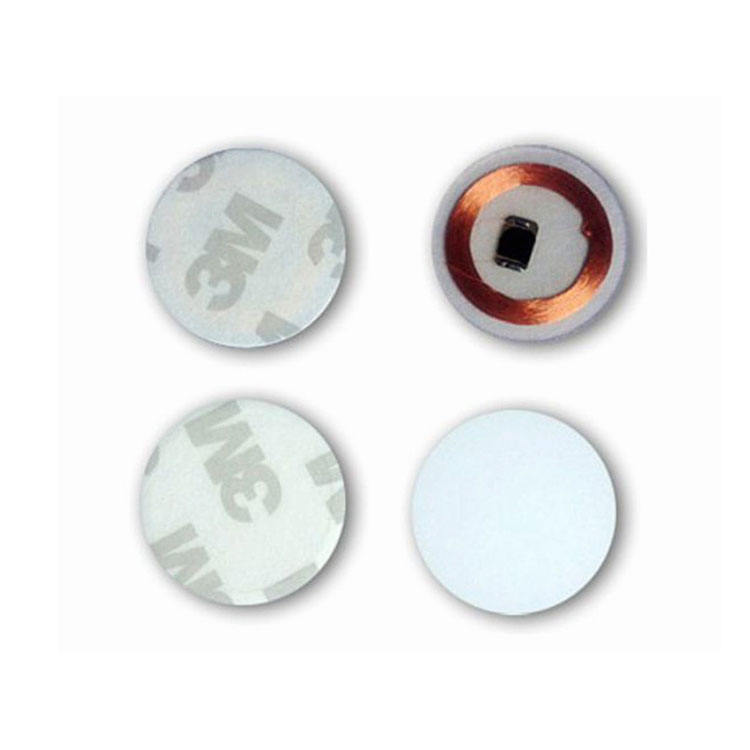

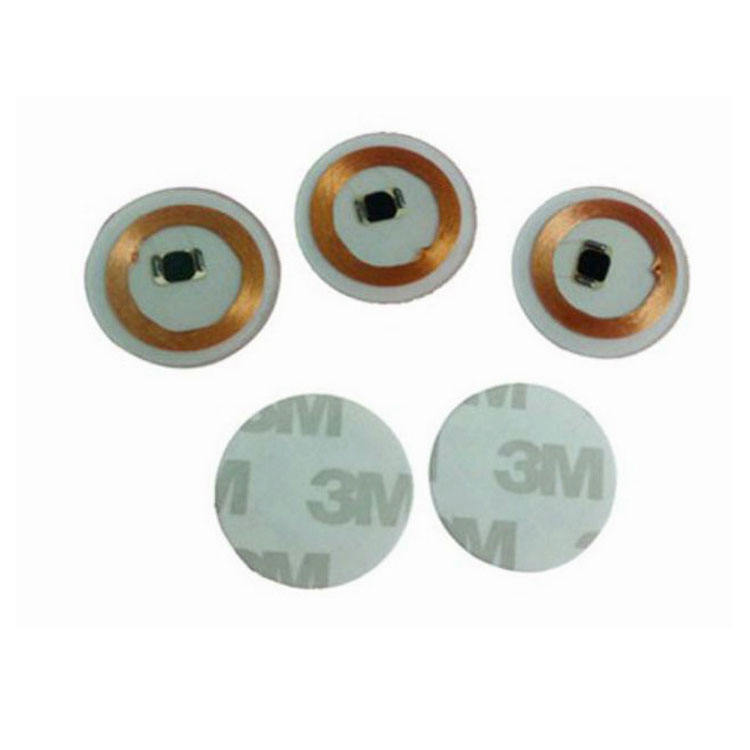

Small size passive rfid tag / coin disc nfc tag / nfc token tag adhesive
Overview
This rfid tag size at 15/20/25mm or customized size with material PVC, PET, ABS or paper, the mini shape like a button, coin or disc. Suface printing is available based on client request, like CMYk offset printing, logo printing, series number and etc. Also free sample for program test. As a professional manufacturer, the best price and good quality are available for sure!
Main Application
1. E-ticket system
2. payment management
3. Access control system
4. Library managemnet
5. stock management
6. parking system
7. clothing management etc.
Chip Option
-- 125KHz : EM4200, EM4305, TK4100, TK4168, T5577, ect
-- 860-960MHz: Alien H3, Impinj Monza 3 / 4 / 5 / 6
Product Parameter
RFID disc coin tag | ||
1.Material | Antenna Material | Copper/Aluminum foil |
| Surface material | PVC/PET/ABC |
2.RFID Parameters | Frequency | 125KHz,13.56MHz,860-960MHz |
| Protocol | ISO 11784 , 1S014443A ,epc gen2 |
| Operation distance | Depend on the chipand reader power |
| R/W | Read only or R&W |
| Data retention | >10 years |
3.Dimension | 20/25/30mm or customized | |
4.Environment | Operation temperature | -25°C~85°C |
6.Customzied Crafts | Surface | Glossy/Matt/Frosted |
| Printing | Plain white, offset printing or silkscreen printing |
| Printable | Custom design is available |
| Number | UID code, series code, or customized |
7.Application | Access control, membership, bus, parking etc | |
