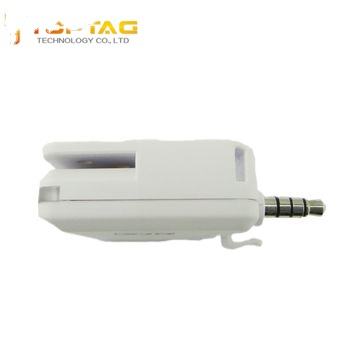

RFID reader waterproof RFID credit card Reader/ smart card reader for rfid door lock access

Power source

From USB

Speed

12 Mbps(Full Speed)

Supply voltage

Regulated 5V DC

Supply Current

200mA (maximum) 50Ma (standby),100Ma (normal)

Contactless smart card interface

Standard

ISO/IEC 18092,ISO14443A and B, FeliCa

Protocol

Felica protocol, T=CL protocol

Operation Frequency

13.56MHz

Smart card read/write speed

106kbps, 212 kbps, 424 kbps

Casing

Dimensions

98mm(L)X65mm(W)X12.8mm(H)

Weight

70 grams

Material

Polycartionate (PC)

Color

Pearl White

Antenna size

50X40mm

Operating distance

Up to 50mm

Built-in Peripherals

BI-Color LED

Bi-color LED, red and green

Buzzer

Monotone (optional)

Operating Conditions

Temperature

0~50 C

Humidity

10%~80%

Cable connector

Length

1m(USB)

Certifications/Compliance

PC/SC ,CCID,CE,FCC,VCCL,ROHS compliant

Microsoft WHOL 2000,XP,Vista 7

Device driver operating system support

Windows 2000, Server 2003,XP, Vista, Server 2008,7

Windows CE 5.0

Linux, Mac OS X
