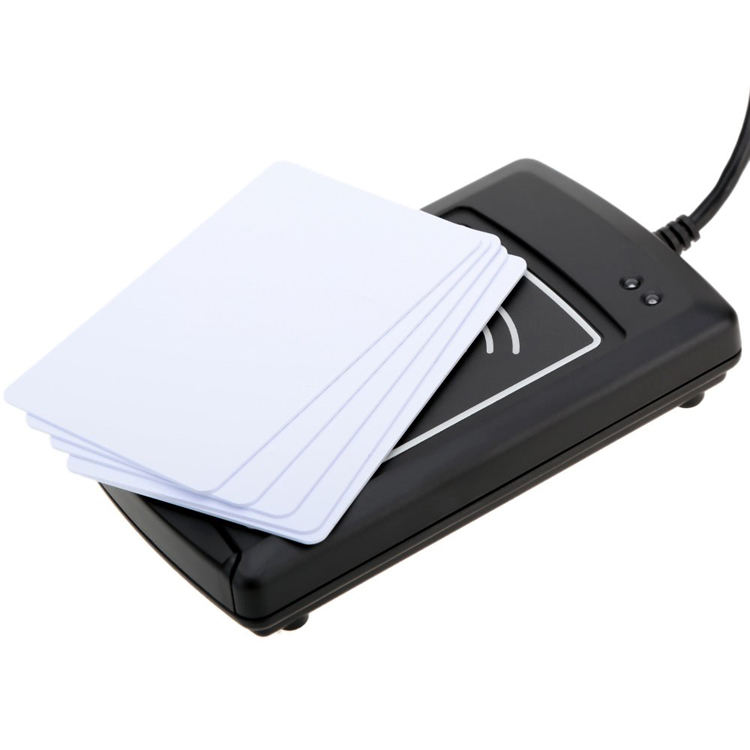

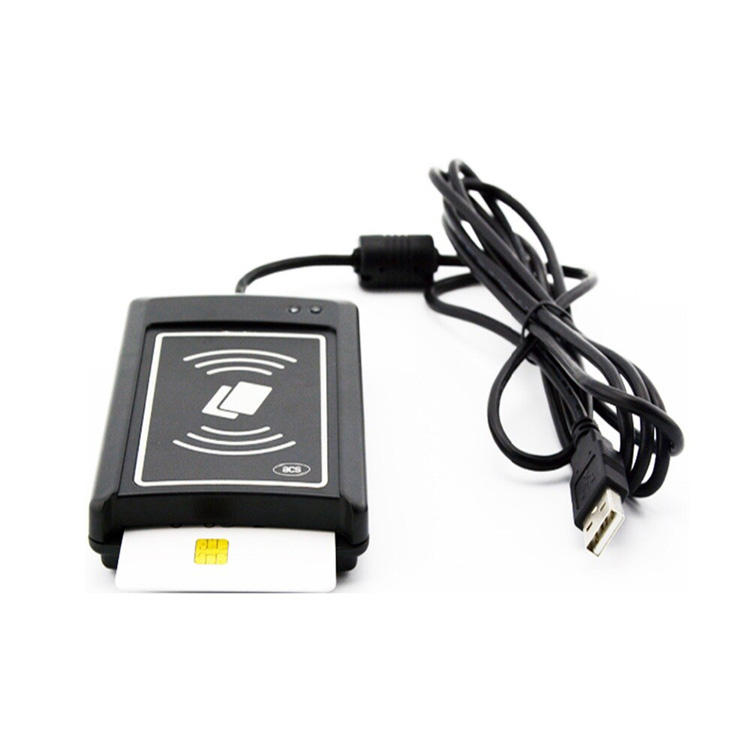

RFID NFC ACR1281U-C1 Dual chip card reader II USB Dual Interface Reader

Availability:
Quantity:
Product Description
Product Description


ACR1281U-C8
USB Dual Interface Reader


ACR1281U-C1 DualBoost II is the second generation of ACS’s ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.

The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.






Features

  • USB 2.0 Full Speed Interface

  • CCID Compliance

  • Contactless Smart Card Reader:

    • Read/write speed of up to 848 kbps

    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    • Supports ISO 14443 Part 4 Type A and B cards and MIFARE series

    • Built-in anti-collision feature (only one tag is accessed at any time)

    • Supports extended APDU (max. 64 kbytes)

  • Contact Smart Card Reader:

    • Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)

    • Supports CAC (Common Access Card)

    • Supports PIV (Personal Identity Verification Card)

    • Supports microprocessor cards with T=0 or T=1 protocol

    • Supports memory cards

    • ISO 7816-compliant SAM slot

  • Application Programming Interface:

    • Supports PC/SC

    • Supports CT-API (through wrapper on top of PC/SC)

  • Built-in Peripherals:

    • Two user-controllable LEDs

    • User-controllable buzzer

  • USB Firmware Upgradability



Typical Applications

  • e-Government

  • e-Banking and e-Payment

  • e-Healthcare

  • Transportation

  • Network Security

  • Access Control

  • Loyalty Program


Physical Characteristics
Dimensions (mm)
120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)

Weight (g)
140 g

Color
Black

USB Interface
Protocol
USB CCID

Type
Four Lines: +5V, GND, D+ and D-

Connector Type
Standard Type A

Power Source
From USB port

Speed
USB Full Speed (12 Mbps)

Supply Voltage
5V

Supply Current
Max. 200aA

Cable Length
2.0m fixed cable

Contactless Smart Card Interface
Standard
ISO 14443 A and B Parts 1-4

Protocol
ISO 14443 T=CL for ISO 14443-4 compliant cards

M Classic Card Protocol, T=CL

Operating Frequency
13.56MHz

Operating Distance
Up to 50 mm (depending on card type)

Smart Card Read/Write Speed
106 Kbps, 212 Kbps, 424 Kbps, 848 Kbps

Antenna Size
65 mm x 60 mm

Contact Smart Card Interface
Number of Slots
1 Full-sized Card Slot

Standard
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol
T=0; T=1

Supply Current
Max. 60 mA

Smart Card Read/Write Speed
9.6 Kbps - 420 Kbps

Short Circuit Protection
(+5) V/GND on all pins

Clock Frequency
4.8 MHz

Card Connector
Landing

Card Insertion Cycles
Min. 200,000

SAM Card Interface
Number of Slots
1 Standard SIM-sized

Standard
ISO 7816, Class A (5V)

Protocol
Card Connector

Card Connector Type
Contact

Built-in Peripherals
LED
2 sights-color: Red and Green

Buzzer
Monotone

Operating Conditions
Temperature
0 °C - 50 °C

Humidity
MAX. 90% (non-condensing)

MTBF
500, 000 hrs

Application Programming Interface
PC-Linked mode
PC / SC

CT-API (through wrapper on top of PC/SC)

Certifications / Compliance
ISO 14443, ISO 7816, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS 2, REACH
Device Driver Operating System Support
Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Linus Mac OS, Android
