Pos RFID 13.56MHz USB SIM Chip Card Credit Card Reader & Writer ACR1281U-K1

1. Introduction

The ACR1281U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support not only ISO 14443 Type A and B cards but also FeliCa and NFC tags.

By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR1281U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122S, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.

2. Typical Applications

• 1. E-Government

• 2. E-Banking and e-Payment

• 3. E-Healthcare

• 4. Transportation

• 5. Network Security

• 6. Access Control

• 7. Loyalty Program

3. Product Parameter

USB interface
Power source	From USB
Speed	12 Mbps (Full Speed)
Supply Voltage	Regulated 5 V DC
Supply Current	200 mA (maximum); 50 mA (standby); 100 mA (normal)
Contactless Smart  Card Interface
Standard	ISO/IEC 18092 NFC, ISO 14443 A and B, FeliCa
Protocol	FeliCa protocol, T=CL protocol
Operating Frequency	13.56 MHz
Smart card read / write speed	106 kbps, 212 kbps, 424 kbps
Physical specifications
Dimensions	120.5 mm (L) x 72 mm (W) x 20.4 mm (H)
Weight	148 grams
Material	Polycarbonate (PC)
Color	Black
Antenna Size	50 mm x 40 mm
Operating distance	Up to 50 mm (depending on tag type)
Built-in Peripherals
Bi-Color LED	Bi-color LED, red and green
Buzzer	Monotone
Operating conditions
Temperature	0 – 50 °C
Humidity	10% - 80%
Cable Connector
Length	1.0 M (USB)
Certification/standard
PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7
Device drivers for the operating system
Windows ® 98, ME, 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7 Windows ® CE 5.0 Linux, Mac

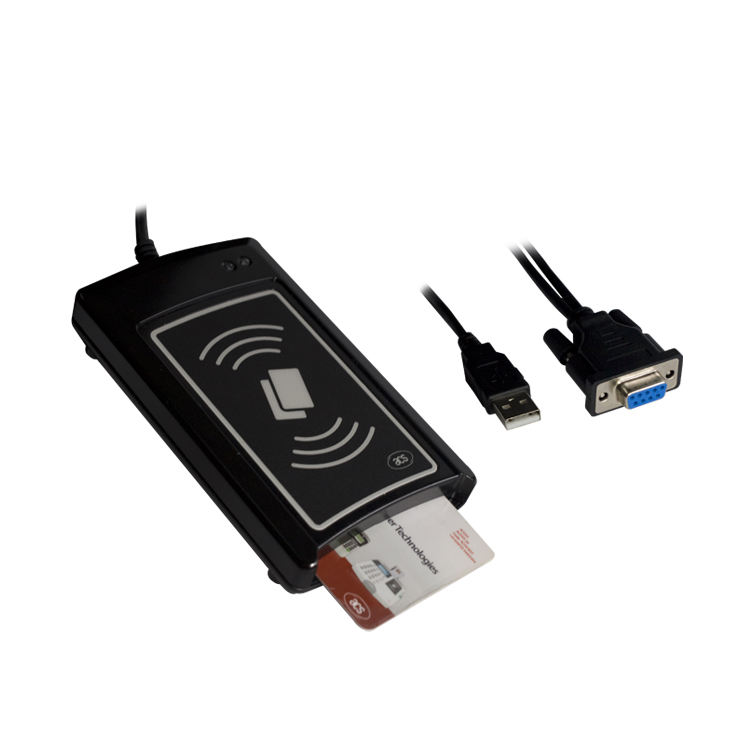

4. PRODUCT SHOW
