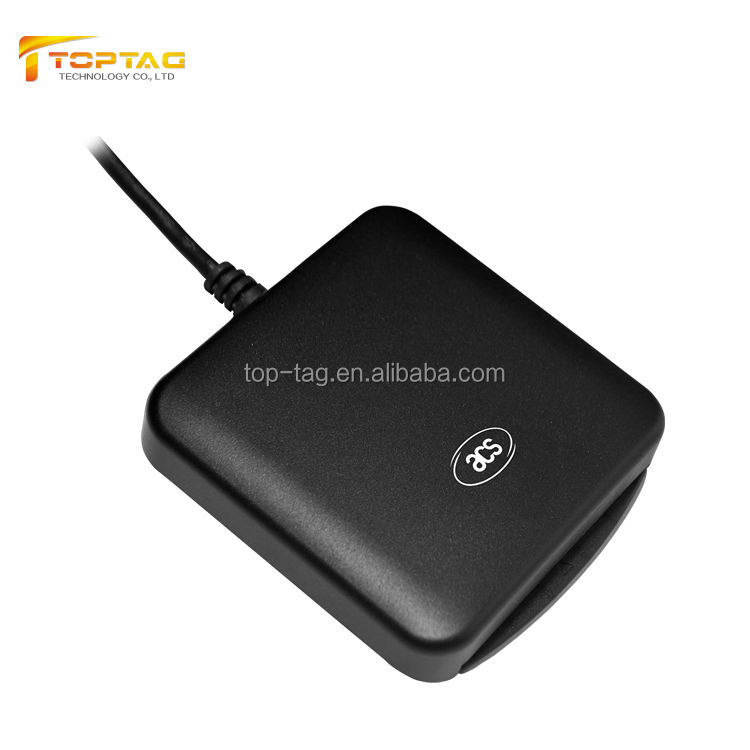

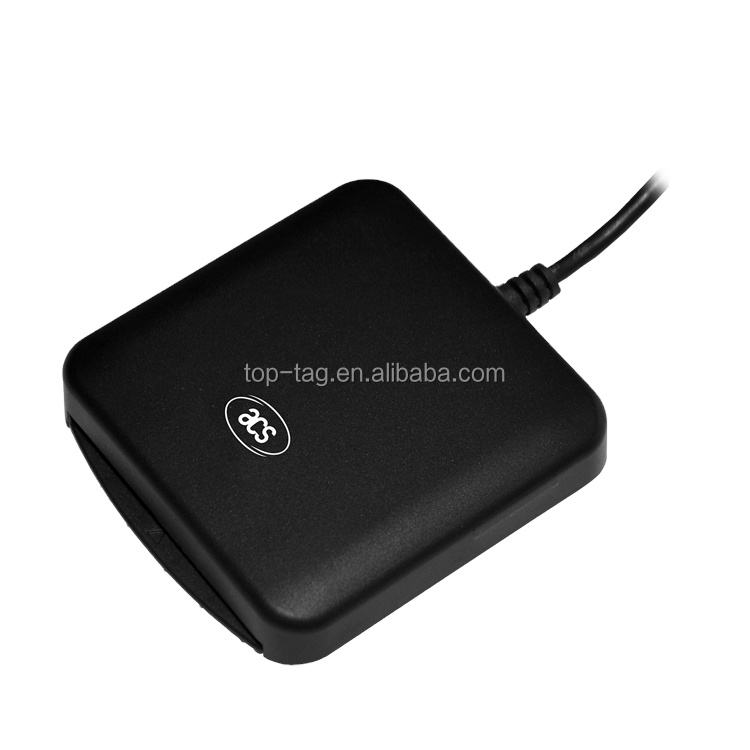

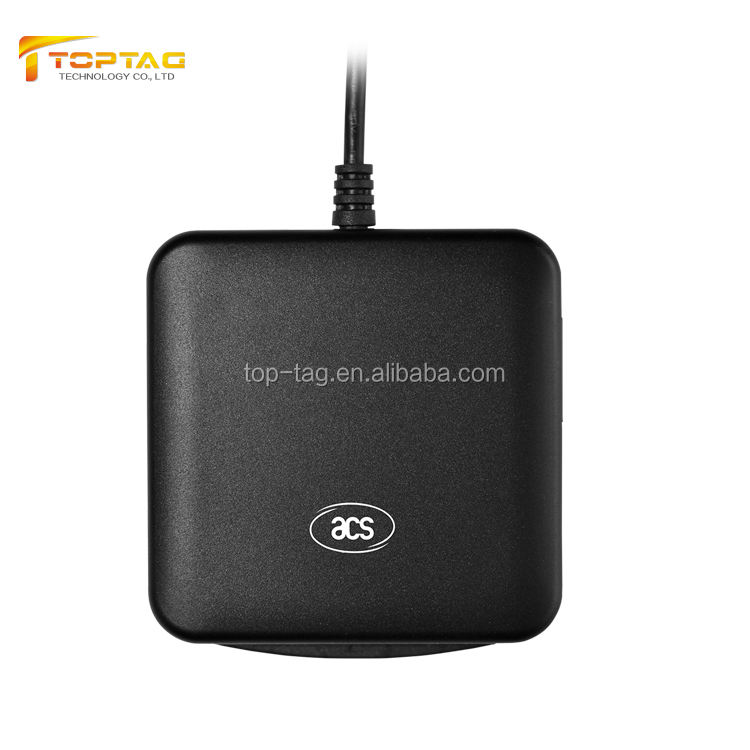

PC-Linked USB ACR39U Smart EMV Credit chip Card Reader Writer

Product Description



  1.0 Introduction

ACR39U Smart Card Reader ushers in new and modern technology to the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet rigorous requirements of smart card–based applications.

  It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U can last for 100,000 card insertion cycles. ACR39U also has various certifications, such as EMV 2000 Level 1 and PBOC, making it the ideal smart card reader for your e-Banking and e-Payment application needs

  It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows, Linux and Mac. Additionally, ACR39U may be used on mobile devices running on the Android™ platform versions 3.1 and above.

  With its sleek, stylish design and powerful core, the ACR39U is the ideal peripheral for your smart card applications.



1.0. Features

·

• Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards

• Supports microprocessor cards with T=0 or T=1 protocol

• Supports memory cards such as:

• Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542

• Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528

• Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024

• SGS-Thomson: ST14C02C, ST14C04C

• Gemplus: GFM1K, GFM2K, GFM4K, GFM8K

• Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:

• Cards with intelligent 1k bytes EEPROM with write-protect function, including:

• Cards with intelligent 256 bytes EEPROM with write-protect function, including:

• Supports PPS (Protocol and Parameters Selection)

• Features Short Circuit Protection

• Application Programming Interface:

• Supports PC/SC

• Supports CT-API (through wrapper on top of PC/SC)

1.0.  Typical Applications

e-Government

Mobile Banking & Payment

e-Healthcare

Access Control

Network Security

Public Key Infrastructure

e-Purse & Loyalty

Technical Specification

Dimensions	72.2 mm (L) x 69.0 mm (W) x 14.0 mm (H)
Interface	USB 2.0 Full Speed
Supply Voltage	Regulated 5 V DC
Supply Current	Max. 50 mA
Operating Temperature	0-50 °C
CLK Frequency	4.8 MHz
MTBF	500,000 hrs
Smart Card Interface Support	ISO 7816 Class A, B and C ( 5 V, 3 V, 1.8 V )
Compliance / Certifications	EN60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact),  PC/SC, CCID, CE, FCC, RoHS 2, REACH, TAA USA), J-LIS (Japan), VCCI (Japan), PBOC (China) Microsoft® WHQL
Operating System Support	Windows® Linux® Mac OS® Android™
