NFC RFID Reader Cheap Price, NFC RFID Credit Card Reader ACR1281U-C1

Availability:
Quantity:
Product Description

Welcome to Toptag!!

Professional Team Work & Production Line

7 days 24 hours After Sales Service

Quality is Our Culture


NFC RFID Reader Cheap Price, NFC RFID Credit Card Reader ACR1281U-C1


Product Description


1. Introduction


The ACR1281U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support not only ISO 14443 Type A and B cards but also FeliCa and NFC tags.


By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR1281U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122S, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.

2. Typical Applications


  • 1. E-Government

  • 2. E-Banking and e-Payment

  • 3. E-Healthcare

  • 4. Transportation

  • 5. Network Security

  • 6. Access Control

  • 7. Loyalty Program


3. Product Parameter


USB interface

Power source

From USB

Speed

12 Mbps (Full Speed)

Supply Voltage

Regulated 5 V DC

Supply Current

200 mA (maximum); 50 mA (standby); 100 mA (normal)

Contactless Smart  Card Interface

Standard

ISO/IEC 18092 NFC, ISO 14443 A and B, FeliCa

Protocol

FeliCa protocol, T=CL protocol

Operating Frequency

13.56 MHz

Smart card read / write speed

106 kbps, 212 kbps, 424 kbps

Physical specifications

Dimensions

120.5 mm (L) x 72 mm (W) x 20.4 mm (H)

Weight

148 grams

Material

Polycarbonate (PC)

Color

Black

Antenna Size

50 mm x 40 mm

Operating distance

Up to 50 mm (depending on tag type)

Built-in Peripherals

Bi-Color LED

Bi-color LED, red and green

Buzzer

Monotone

Operating conditions

Temperature

0 – 50 °C

Humidity

10% - 80%

Cable Connector

Length

1.0 M (USB)

Certification/standard

PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed

Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7

Device drivers for the operating system

Windows ® 98, ME, 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7

Windows ® CE 5.0

Linux, Mac

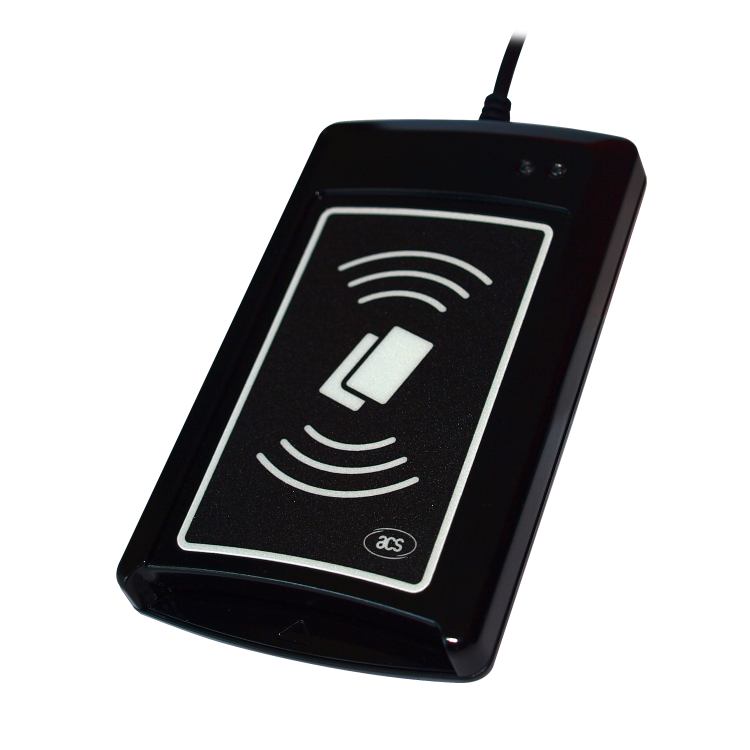

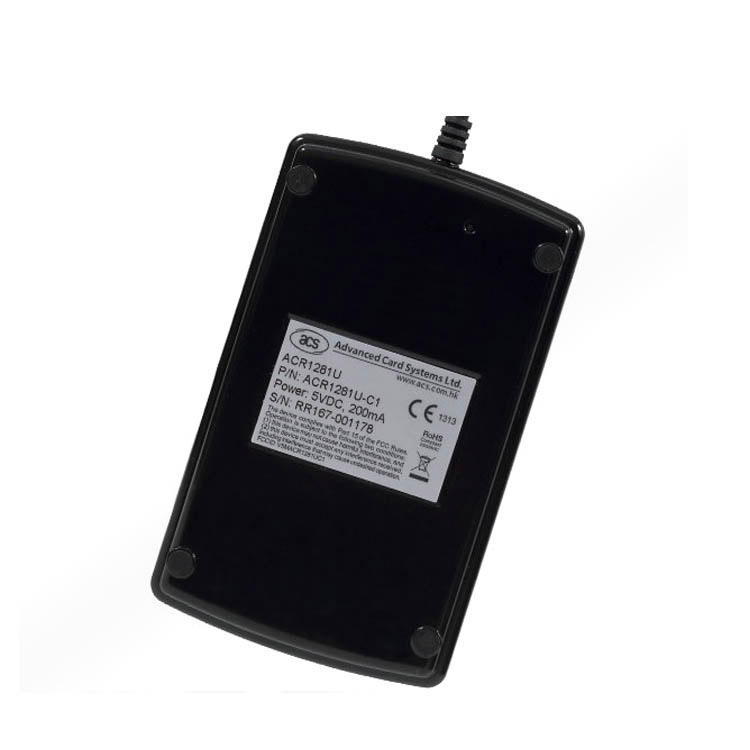

4. PRODUCT SHOW

NFC RFID Reader Cheap Price, NFC RFID Credit Card Reader ACR1281U-C1 NFC RFID Reader Cheap Price, NFC RFID Credit Card Reader ACR1281U-C1 NFC RFID Reader Cheap Price, NFC RFID Credit Card Reader ACR1281U-C1
