Mini Mobile Type A Pocket Contact IC Chip USB ISO 7816 Smart Card Reader ACR39U-N1

Product Description

Small ISO 7816 USB Type A Smart Chip Card Reader Writer with Swivel ACR39U-N1

Product Description

ACR39 PocketMate II with USB Type A Connector represents an  new paradigm.No larger than a USB stick, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides value and reliable functionality to meet your security needs.

ACR39U PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. It supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC) and SIPRNET Card. This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.

This USB Type-A connector version of ACR39U PocketMate II enables backwards compatibility and reversible use, along with all of the features mentioned for ACR39U series. ACR39U PocketMate II can easily be integrated in a computer-based or mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Solaris, and Mac OS®. In addition, ACR39U PocketMate II may now be used on mobile devices running on Android™ versions 3.1 and later.

With the evolution of ACR39U Pocketmate II to USB-Type A, there are now more opportunies for the next generation of your smart card solution.


  • USB 2.0 Full Speed Interface

  • USB Type A Connector

  • Plug and Play – CCID support brings utmost mobility

  • Swivel Motion Design

  • Smart Card Reader:

    • Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

    • Supports CAC

    • Supports SIPRNET Card

    • Supports J-LIS Card

    • Supports microprocessor cards with T=0 or T=1 protocol

    • Supports memory cards

    • Supports PPS (Protocol and Parameters Selection)

    • Features Short-Circuit Protection

  • Application Programming Interface:

    • Supports PC/SC

    • Supports CT-API CT-API (through wrapper on top of PC/SC)

  • Supports Android™ 3.1 and later

Physical Characteristics
Dimensions (mm) 58.0 mm (L) x 20.0 mm (W) x13.7mm (H)
Weight (g) 12g
USB Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance EN 60950/IEC 60950
ISO 7816
USB Full Speed
EMV Level 1 (Contact)
J-LIS (Japan)
VCCI (Japan)
Microsoft® WHQL
RoHS 2
Device Driver Operating System Support
Device Driver Operating System Support Windows®

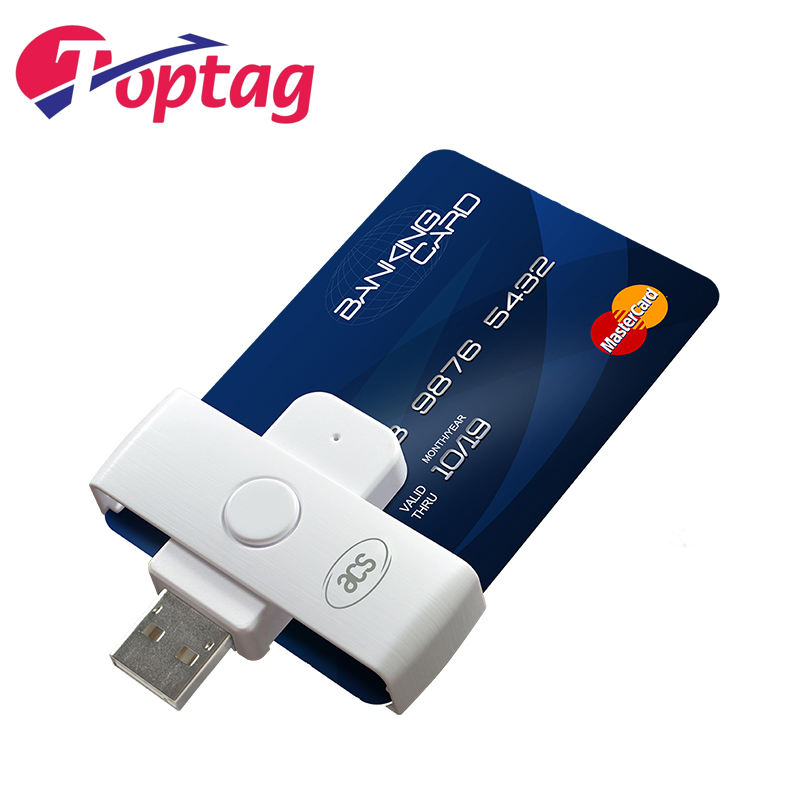

Pictures of NFC reader ACR39U-N1
