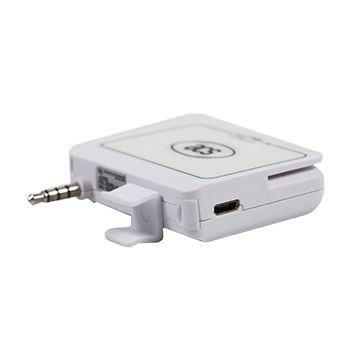

Mini ISO7816 Sam Slot Magnetic Smart Card Reader ACR32

Product Description


  • ACR32 MobileMate Card Reader is the ideal tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost.

  •   Additionally, ACR32 Mobile Mate uses a rechargeable Lithium-ion battery as its power supply and a standard 3.5mm audio jack interface , thus allowing it to be integrated impeccably into any mobile device in the market.

  •   ACR32 Mobile Mate is a reliable mobile card reader that uses AES-128 encryption algorithm and DUKPT Key Management System for secure transactions. It seamlessly unites card reader functionality with mobility, which allows you to access secure applications anytime, anywhere.


3.5mm Audio Jack Interface

  • USB-Powered (PC-linked Mode):

  • USB 2.0 Full Speed Interface

  • CCID Compliance

Application Programming Interface:

  • Supports PC/SC

  • Supports CT-API (through wrapper on top of PC/SC)


  • Powered by a Lithium-ion battery (rechargeable through PC-linked mode)

Smart Card Reader:

  • Supports ISO7816 CLass A, B and C (5 V, 3V, 1.8 V) cards

  • Supports microprocessor cards with T=0 and T=1 protocol

  • Supports memory cards

  • Supports PPS (Protocol and Parameters Selection)

  • Features Short Circuit Protection

Magnetic Stripe Card Reader:

  • Reads up to two tracks of card data (Track 1 / Track 2)

  • Capable of bidirectional reading

  • Supports AES128 encryption algorithm

  • Supports DUKPT Key Management System

  • Supports ISO 7810 / 7811 magnetic cards

  • Supports Hi-Coercivity and Low-Coercivity magnetic cards

  • Supports JIS1 and JIS2


  • Mobile Banking & Payment

  • e-Healthcare

  • e-Purse & Loyalty



60.0mm (L) x 45.0mm (W) x 16.0mm (H)


3.5mm 4-pole audio jack USB Full Speed


Lithium-ion battery (rechargeable through USB)

Supply Voltage

3.2 to 3.7 V DC

Supply Current

5 mA

Operating Temperature


Card Swipe Speed

Max. 10 IPS (inches per second)

Card Swipe Cycles

Min. 500,000

Contact Card Insertion Cycles

Min. 100,000

Magnetic Stripe Card Support

ISO7810 / ISO7811 cards

Hi-coercivity and Low-coercivity cards

JIS1 and JIS2 cards

Smart Card Interface Support

ISO7816 Class A, B and C cards

Microprocessor cards with T=0 and T=1 protocol

Memory cards

Compliance / Certifications

EN60950/IEC 60950, ISO7816, CE, FCC, VCCI, PC/SC, CCID, EMV Contact Level 1, RoHS 2, REACH, USB Full Speed

Microsoft WHQL: 2000, XP, Vista, 7, 8, 8.1, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2

Operating System Support

Windows CE, 98, ME, 2000, 2003, 2003 R2,  XP, Vista, 2008, 7, 8, 8.1

Windows XP x64, 2003 x64, 2003 R2 x64, Vista x64, 2008 x64, 2008 R2 x64, 7 x64, 8 x64, 8.1 x64, 2012 x64, 2012 R2 x64



Android™ 2.0 and above

iOS 5.0 and above
