Mini ISO 7816 Smart Card Chip Card Reader/Pos Tablet RFID Reader

Availability:
Quantity:
Product Description

Mini ISO 7816 Smart Card Chip Card Reader/Pos Tablet RFID Reader


Mini ISO 7816 Smart Card Chip Card Reader/Pos Tablet RFID Reader

Why choose us?

-- Free Sample is Available

-- Prompt Deliver, Unbeatable Servie

-- Competitive price, Best Quality

-- 100% test of all our products

Product Description

Mini ISO 7816 Smart Card Chip Card Reader/Pos Tablet RFID Reader

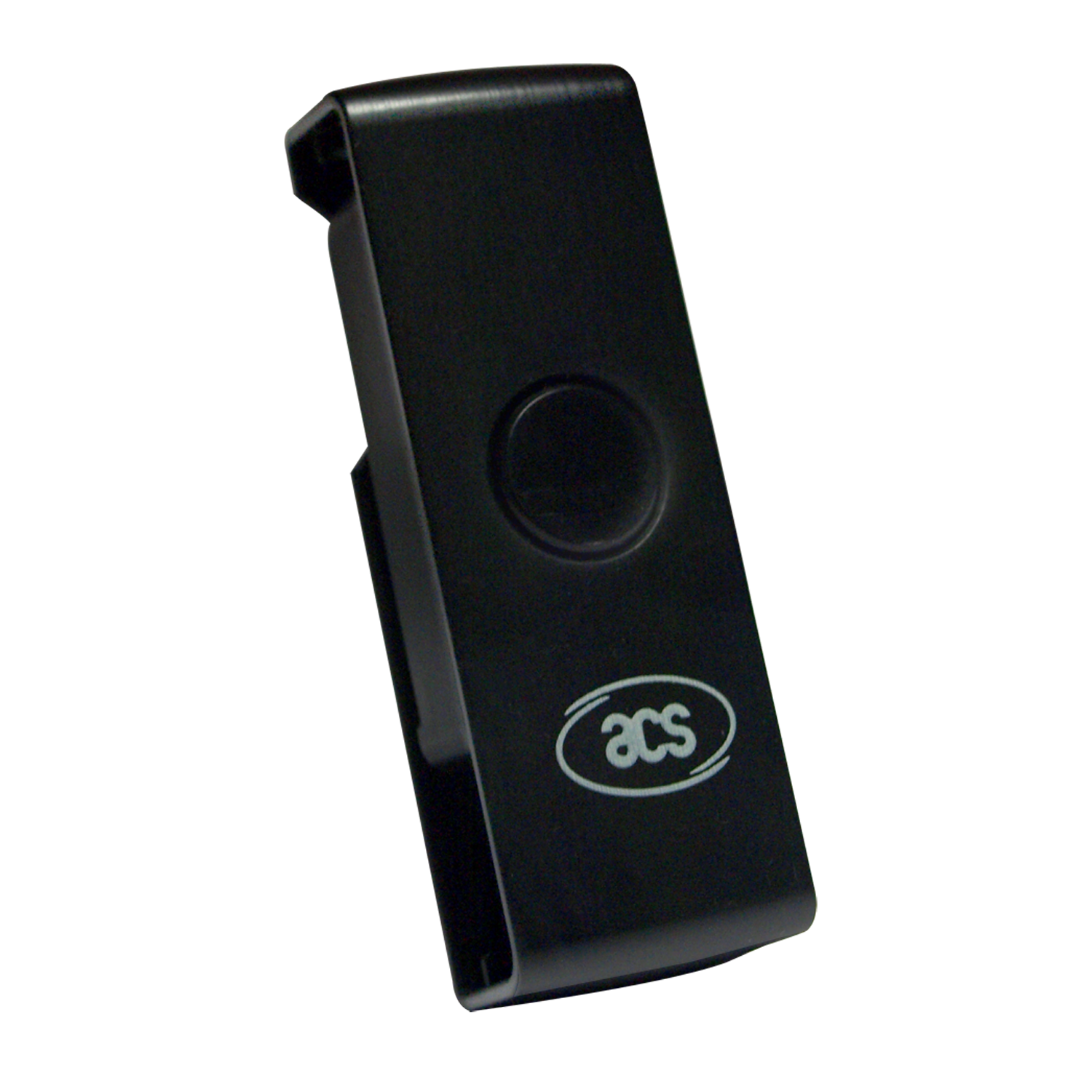

1. Overview of ACR39T-A1 Smart Card Reader

ACR39T-A1 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.

ACR39T-A1 supports ISO 7816 smart cards, various memory cards, and microprocessor cards with T=0 and T=1 protocol. It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows, Linux, and Mac OS. Additionally, ACR39T-A1 may also be used on mobile devices running on Android™ platform versions 3.1 and above.

Weighing nothing more than your standard USB stick, ACR39T-A1 is a device that you can bring anywhere to keep smart card technology right at your fingertips.


2. Specification of ACR39T-A1 Smart Card Reader
Dimensions 49.5 mm (L) x 21.5 mm (W) x 9.0 mm (H)
Interface USB 2.0 Full Speed
Supply Voltage Regulated 5 V DC
Supply Current Max. 50 mA
Operating Temperature 0-50 °C
CLK Frequency 4.8 MHz
Smart Card Interface Support
  • ISO 7816 Class A, B and C ( 5 V, 3 V, 1.8 V )

Compliance / Certifications
  • EN60950/IEC 60950, ISO 7816, USB Full Speed,  PC/SC, CCID, CE, FCC, RoHS 2, REACH,VCCI (Japan)

  • Microsoft® WHQL

Operating System Support
  • Windows

  • Linux

  • Mac OS

  • Android
