Product Description

1.0 Introduction

The ACR890 is a new generation PIN-pad reader from ACR. It incorporates a contact, contactless, and magnetic card reader to help older technology systems (e.g. magnetic stripe-based) to transition to smart cards. ACR890 is built to handle complex applications with its fast processing speed and large memory. This terminal is also designed for mobile environments, enabling wireless connectivity through Wi-Fi, GPRS, and 3G communications.

Among the practical features of the ACR890 is its ability to print anywhere via its built-in thermal printer. In addition to its large internal memory, ACR890 also allows for memory expansion through a micro SD card slot, to enable higher memory allocation for application and transaction data. With its 240x320 3.5” color LCD display, the ACR890 shows images in remarkable detail and allows the user to easily navigate the display on its touchscreen LCD. The terminal also features a built-in speaker for additional audio experience.

The ACR890 is a standalone terminal with advanced capabilities to suit multifaceted applications, may they be in the transportation, government, healthcare, banking or retail sector.

1.0. Features

• ·        32-bit A8 Processor running Embedded Linux

  ·        4GB Flash and 256MB RAM

  ·        Expandable Micro SD Card support with memory of 1 GB up to 16 GB

  ·        1 Full-sized Contact Card Slot

  ·        2 SAM Card Slots (Contact Connector)

  ·        1 Standard SIM Card Slot for GPRS Function

  ·        Integrated Contactless Smart Card Reader

  ·        Magnetic Stripe Support

  ·        Firmware Upgradeable

  ·        Built-in Peripherals

  o   Easy-to-Read, High-Resolution Colored LCD

  o   3.5" Resistive Touchscreen LCD

  o   Highly Durable Chemical-Resistant 20-button Keypad

  o   Thermal Printer

  o   Real-Time Clock (RTC) with Independent Backup Battery

  o   4 LED Status Indicators

  o   Built-in Speaker

  ·        Connectivity Support

  o   Wi-Fi

  o   GPRS/GSM

  o   3G Connectivity Support

• o   USB Client High Speed

  o   Serial RS232 (for debug)

1.0.  Typical Applications

• e-Government

• Mobile Banking & Payment

• e-Healthcare

• Access Control

• Network Security

• Public Key Infrastructure

• e-Purse & Loyalty

Specification of ACR890

Dimensions	208.0mm (L) x 85.5mm (W) x 53.0mm (H)
Weight	555.0g
Power Source	·        External Power Adapter ·        Rechargeable Li-ion Battery, 7.4 V, 2000 mAh
Compliance / Certifications	·        CE, FCC, RoHS 2 Compliant, ISO 7816, ISO 14443, ISO 7811, USB Full Speed
Connectivity	·        USB Client Full Speed 2.0 ·        Wi-Fi (IEEE 802.11 b/g/n) ·        GPRS/GSM Quad Band ( 850 MHz, 900 MHz, 1800 MHz, 1900 MHz) ·        3G (900MHz/2100 MHz or 850MHz/1900 MHz)
Memory	·        4GB Flash ·        256MB RAM ·        Micro SD up to 16 GB
Supply Voltage	12 V
Supply Current	4.0 A
Operating Temperature	0-50°C
Magnetic Stripe Card Support	·        ISO 7811, Track 1/2/3, Bi-directional
Smart Card Interface Support	·        Contact o   ISO 7816 Class A, B and C (5V, 3V and 1.8V) ·        Contactless o   ISO 14443 Type A & B o   Miafarer o   FeliCa ·        2 SAM Card Slots ·        1 SIM Card Slot

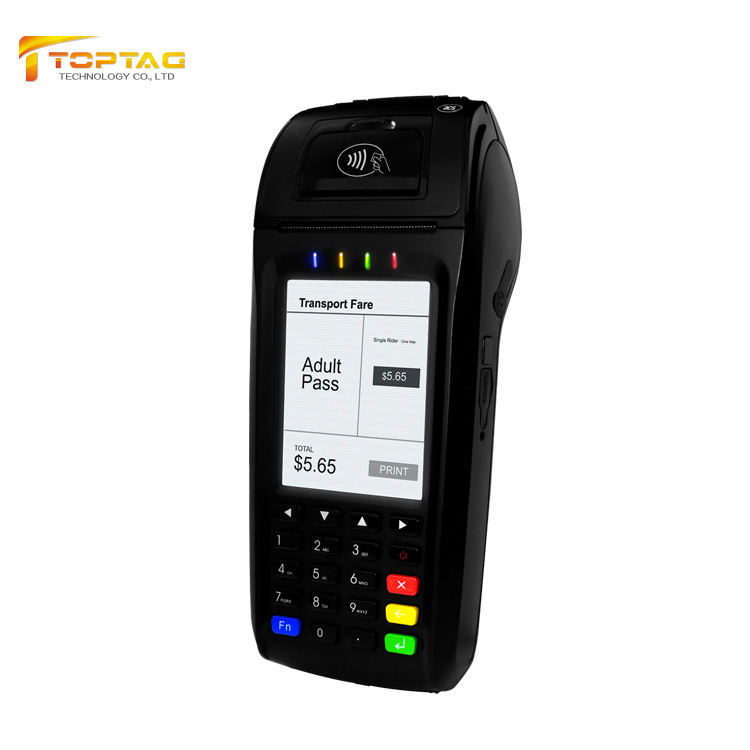

Pictures of products
