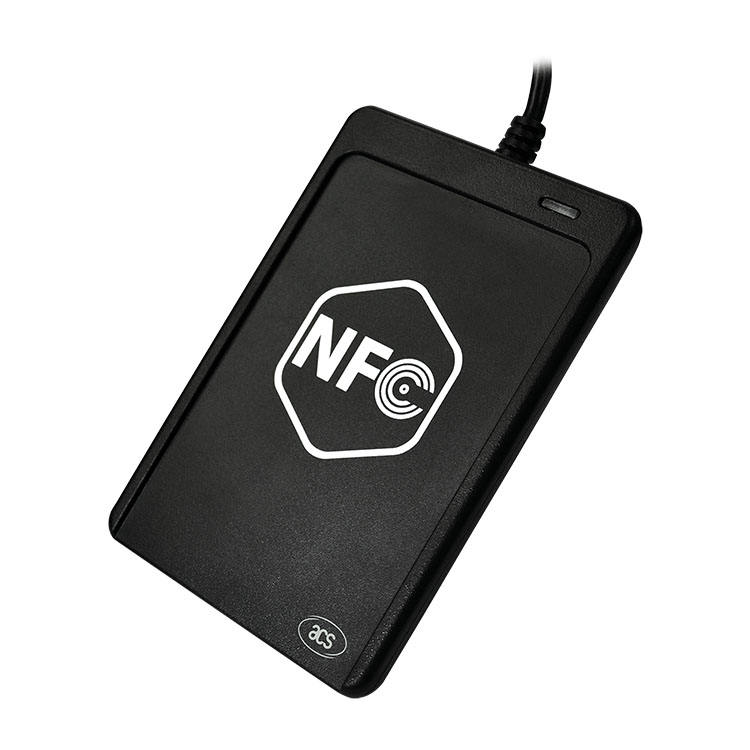

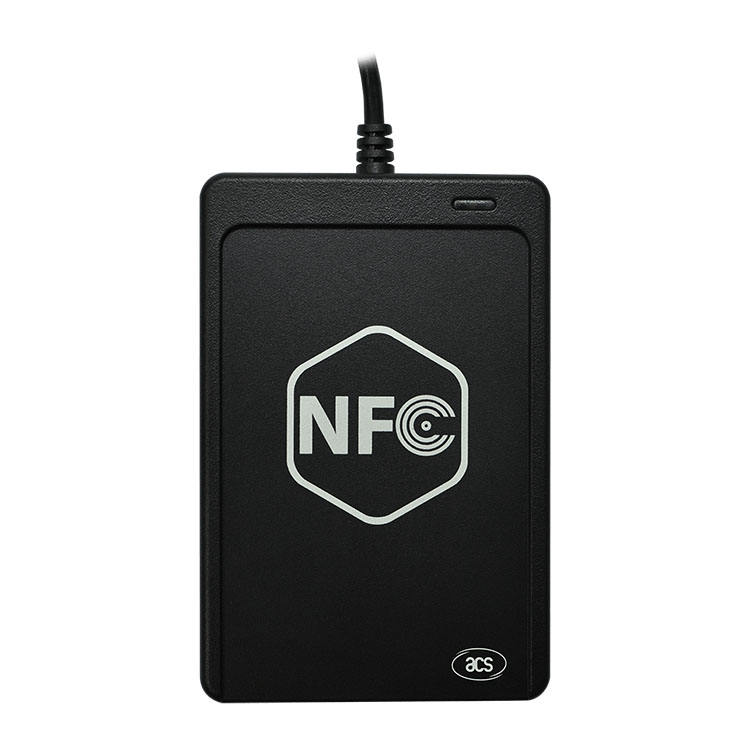

ISO14443A Contactless Smart Card Reader, NFC Reader/Writer ACR1252u

Product Description

SAM Slot ACR1251U USB NFC Reader

Product Description

ISO14443A Contactless Smart Card Reader, NFC Reader/Writer ACR1252u

1.0 Introduction

The ACR1251U USB NFC Reader II offers advanced features such as firmware upgradeability, a SAM (Secure Access Module) slot, and support for NFC tags and devices. It is ideal for contactless applications with added security functions. Through the SAM, key diversification and mutual authentication are made possible, restricting the exposure of keys and limiting the possibility of keys being stolen. This provides a high level of security in contactless operations.

ACR1251U is suitable for any contactless smart card application such as personal identity verification, network login, online banking, and micropayment. With its enhanced NFC features, ACR1251U is also ideal for non-conventional NFC applications. Such applications include smart posters for advertising, marketing, and communication purposes.

Furthermore, ACR1251U is PC/SC-compliant, allowing interoperability across different applications and platforms. ACR1251U also supports remote post-deployment firmware update, which eliminates the need for additional hardware modification. With its compact size, trendy design and rich features, ACR1251U enables you to fully enjoy the convenience of using NFC applications.

The ACR1251U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR1251U with ease.

1.0. Features

  • USB 2.0 Full Speed Interface

  • CCID Compliance

  • USB Firmware Upgradability

  • Smart Card Reader:

    • Read/Write speed of up to 424 kbps

    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    • Supports ISO 14443 Type A and B cards,  FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

    • Built-in anti-collision feature (only one tag is accessed at any time)

    • One ISO 7816-compliant SAM slot

  • Application Programming Interface

    • Supports PC/SC

    • Supports CT-API (through wrapper on top of PC/SC)

  • Built-in Peripherals:

    • User-controllable bi-color LED

    • User-controllable buzzer

    • SAM Slot

1.0.  Typical Applications

  • e-Government

  • Mobile Banking & Payment

  • e-Healthcare

  • Access Control

  • Network Security

  • Public Key Infrastructure

  • e-Purse & Loyalty

Physical Characteristics
Weight (g) 81 g
Dimensions (mm) 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
USB Interface
Power Source From USB port
Protocol USB CCID
Speed USB Full Speed (12 Mbps)
Connector Type Standard Type A
Cable Length 1.0 m, Fixed
Contactless Smart Card Interface
Protocol ISO 14443-4 Compliant Card, T=CL
ISO18092, NFC Tags
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, FeliCa
SAM Card Interface
Protocol T=0; T=1
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V)
Built-in Peripherals
LED 1 bi-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance EN 60950/IEC 60950
ISO 18092
ISO 14443
ISO 7816 (SAM Slot)
USB Full Speed
Felica Performance Certification
J-LIS (Japan)
VCCI (Japan)
MIC (Japan)
KC (Korea)
Microsoft® WHQL
RoHS 2
Device Driver Operating System Support
Device Driver Operating System Support Windows® CE
