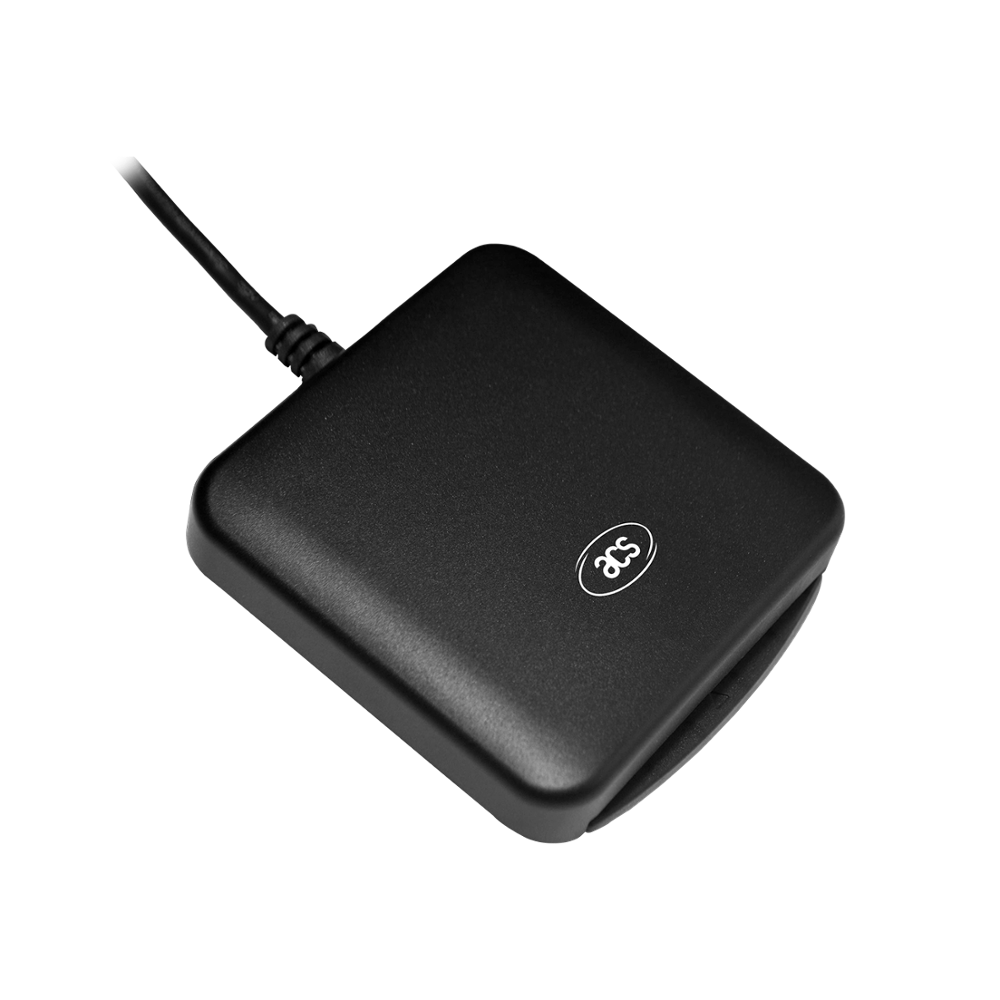

ISO 7816 EMV Certified Contact PC/SC IC Chip Smart Card Reader ACR39U

• Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards

• Supports microprocessor cards with T=0 or T=1 protocol

• Supports memory cards such as:

• Infineon®: SLE4432, SLE4442, SLE5532 and SLE5542

• Infineon®: SLE4418, SLE4428, SLE5518 and SLE5528

• Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024

• SGS-Thomson: ST14C02C, ST14C04C

• Gemplus: GFM1K, GFM2K, GFM4K, GFM8K

• Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:

• Cards with intelligent 1k bytes EEPROM with write-protect function, including:

• Cards with intelligent 256 bytes EEPROM with write-protect function, including:

• Supports PPS (Protocol and Parameters Selection)

• Features Short Circuit Protection

• Application Programming Interface:


•


• Supports PC/SC

• Supports CT-API (through wrapper on top of PC/SC)





Physical Characteristics
Dimensions (mm)	72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H)
Weight (g)	60.0 g
USB Interface
Protocol	USB CCID
Connector Type	Standard Type A
Power Source	From USB port
Speed	USB Full Speed (12 Mbps)
Cable Length	1.5 m, Fixed
Contact Smart Card Interface
Number of Slots	1 Full-sized Card Slot
Standard	ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol	T=0; T=1; Memory Card Support
Others	CAC, PIV, SIPRNET, J-LIS Smart Cards



• e-Government

• Banking & Payment

• e-Healthcare

• Access Control

• Network Security

• Public Key Infrastructure

• e-Purse & Loyalty





Popular used for animal management, resource management, railway inspection, etc



It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards.




ACR38 smart card reader/writer is a USB full speeddevice whichthe interface is for communication between a computer and a smart card.
