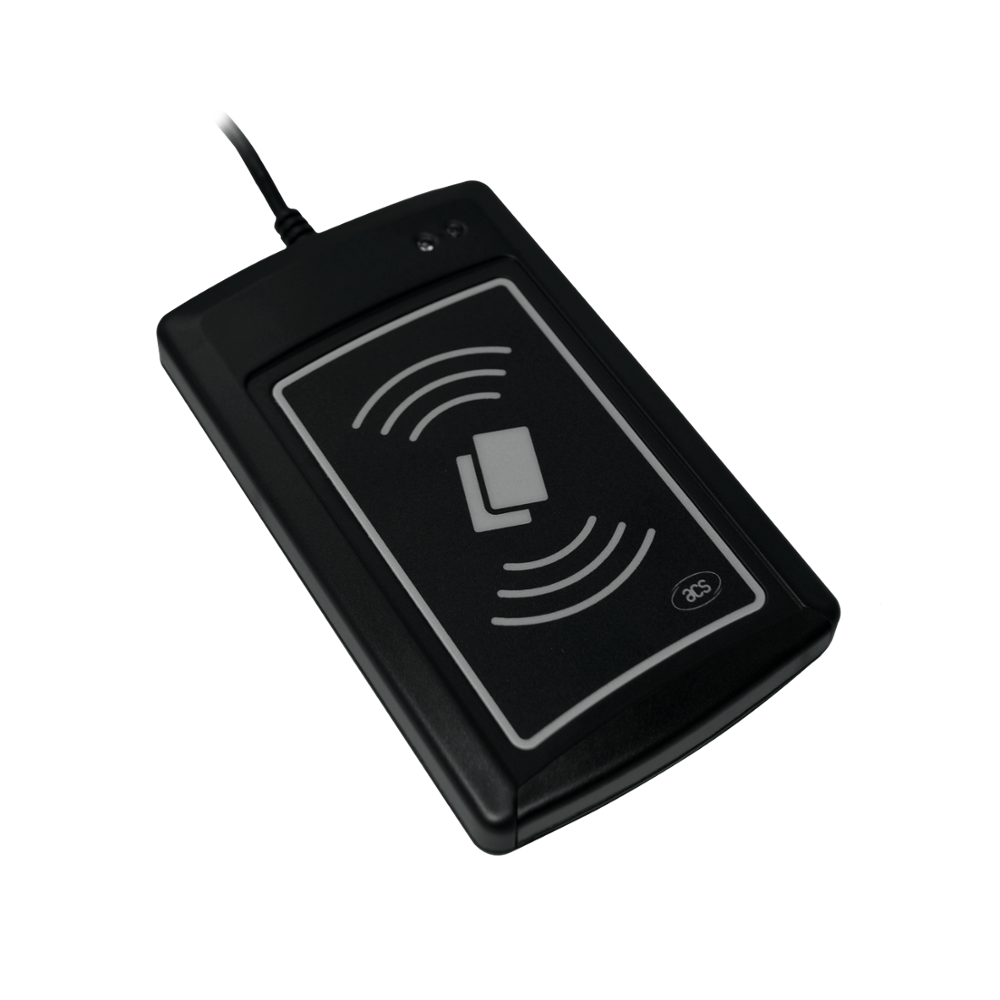

13.56mhz Card UID Reader nfc contactless smart card reader ACR1281U-C2
1.0 Introduction
ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.

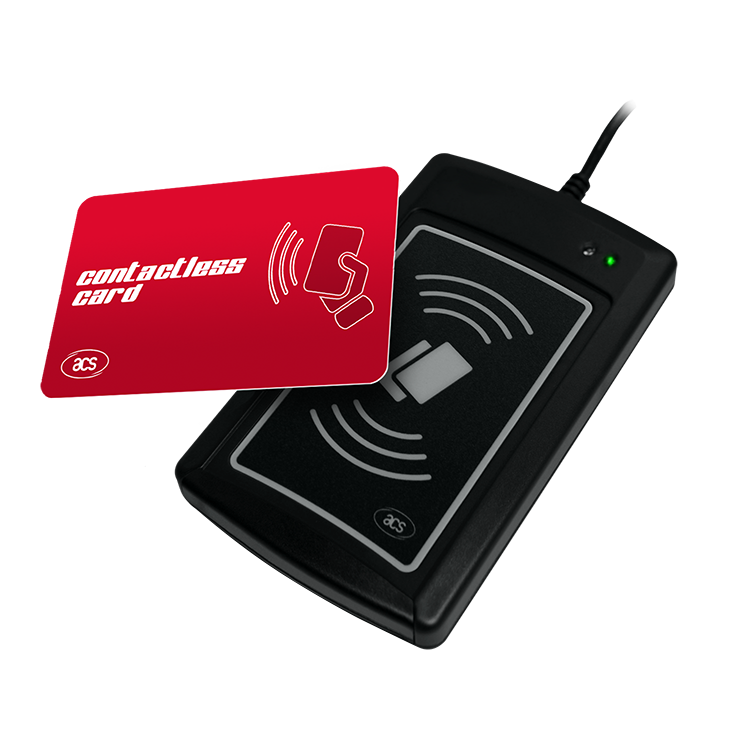

When presented with a contactless card (such as a NFC card), the ACR1281U-C2 retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. ACR1281U-C2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.
Because ACR1281U-C2 Card UID Reader is compliant with the Human Interface Device standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.
1.0. Features :
USB 2.0 Full Speed Interface
USB HID Keyboard Class
Contactless Card Support:
Read/write speed of up to 848 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Part 4 Type A and B cards and MIFARE series
Built-in anti-collision feature (only one tag is accessed at any time)
USB Firmware Upgradability
1.0. Typical Applications
e-Government
Mobile Banking & Payment
e-Healthcare
Access Control
Network Security
Public Key Infrastructure
e-Purse & Loyalty
Technical Specification
Dimensions | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
Weight | 140 g |
Compliance / Certifications |
|
Interface |
|
Operating Distance | Up to 50 mm (depends on the tag type) |
Supply Voltage | Regulated 5V DC |
Supply Current | 200mA (operating); 50mA (standby) |
Operating Temperature | 0-50 C |
Operating Frequency | 13.56 MHz |
Smart Card Interface Support |
|
Operating System Support | · Windows® · Linux® · |
