HF Programmable NFC Tag Reader, USB NFC Device ACR122U Credit Card Reader

Introduction

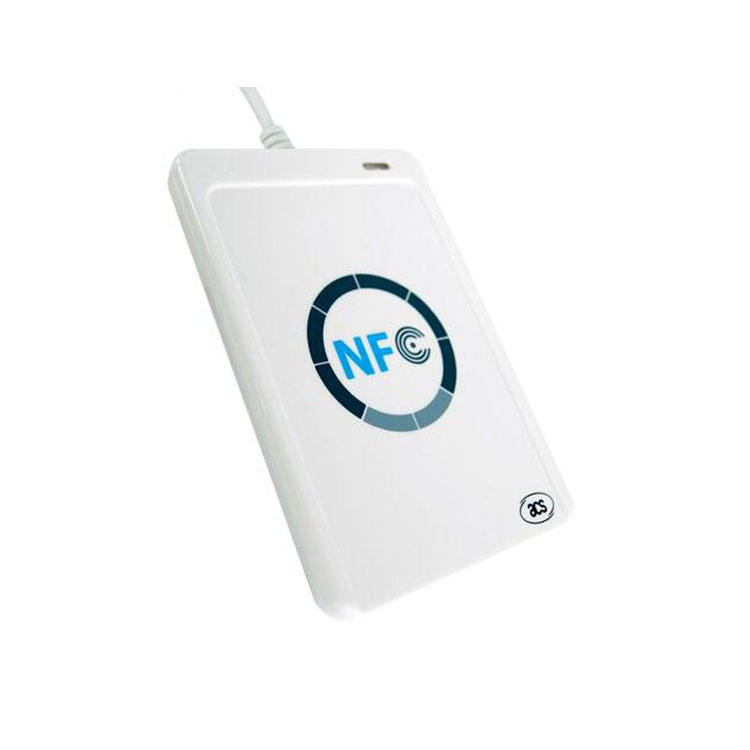

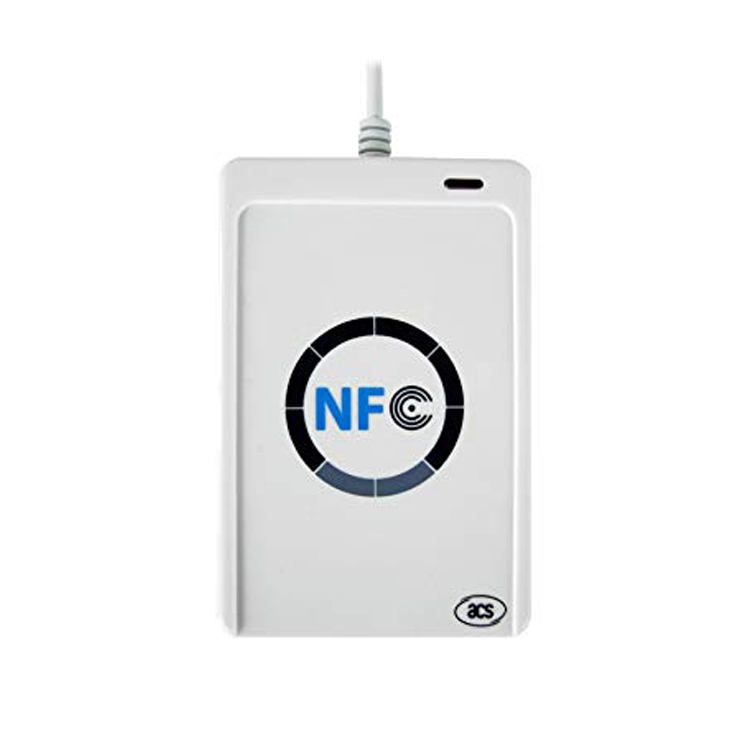

The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID         compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092. This device is designed to support not only ISO 14443 Type A and B cards but also FeliCa and NFC tags.

By making use of up to 424 kbps for NFC tag access and full USB speed of up to 12 Mbps, ACR122U can read and write faster and more efficiently. Furthermore, ACR122U is also PC/SC compliant which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.

Typical Application

1. E-Government

2. E-Banking and e-Payment

3. E-Healthcare

4. Transportation

5. Network Security

6. Access Control

7. Loyalty Program

USB interface
Power source	From USB
Speed	12 Mbps (Full Speed)
Supply Voltage	Regulated 5 V DC
Supply Current	200 mA (maximum); 50 mA (standby); 100 mA (normal)
Contactless Smart  Card Interface
Standard	ISO/IEC 18092 NFC, ISO 14443 A and B, FeliCa
Protocol	FeliCa protocol, T=CL protocol
Operating Frequency	13.56 MHz
Smart card read / write speed	106 kbps, 212 kbps, 424 kbps
Physical specifications
Dimensions	98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight	70 grams
Material	Polycarbonate (PC)
Color	Pearl White
Antenna Size	50 mm x 40 mm
Operating distance	Up to 50 mm (depending on tag type)
Built-in Peripherals
Bi-Color LED	Bi-color LED, red and green
Buzzer	Monotone
Operating conditions
Temperature	0 – 50 °C
Humidity	10% - 80%

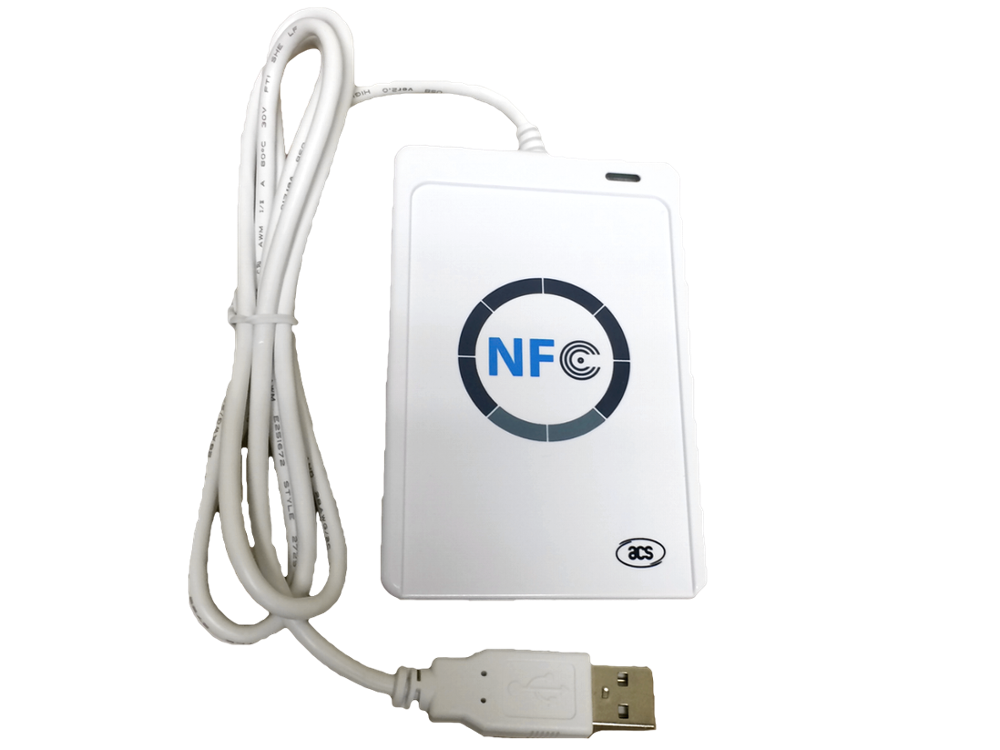

Cable Connector
Length	1.0 M (USB)
Certification/standard
PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7
Device drivers for the operating system
Windows ® 98, ME, 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7 Windows ® CE 5.0 Linux, Mac
