Factory Price 4 wire ibutton reader probe ds9092 with LED light

Availability:
Quantity:
Product Description
Factory Price 4 wire ibutton reader probe ds9092 with LED light



Factory Price 4 wire ibutton reader probe ds9092 with LED light
Product Description

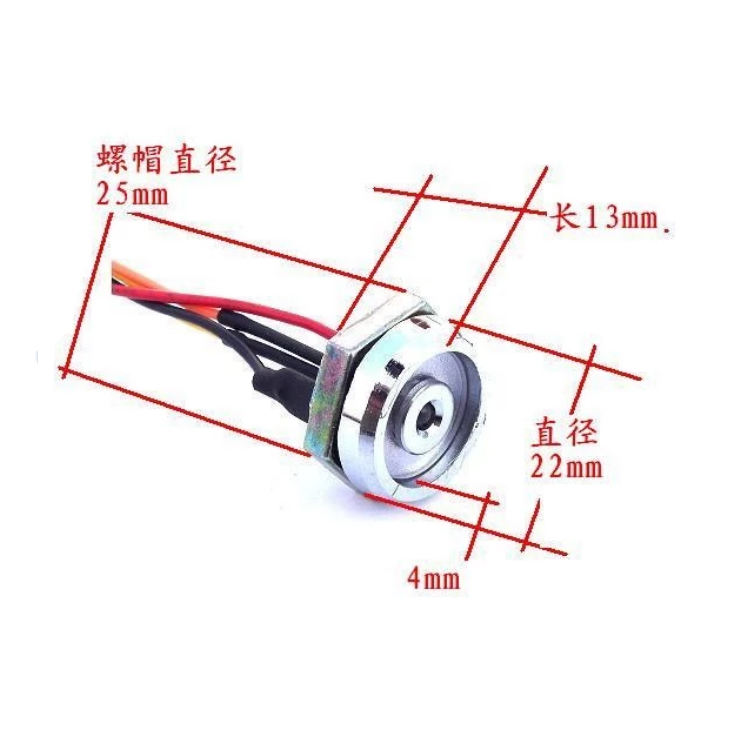

Model IB TM probe DS9092 Shell chrome-plated zinc alloy Data pole 304 stainlesssteel Lug plate silverplating Wire 17*0.14 copper wire, 4mm tinplating.4 wiresLED light yellow (optional)Size Height:13mm, probe outer diameter: 22mm, external nut diameter: 25mm Weight 24gPins:
Green-positive;
Red-Negative;
Black-LED Positive;
White-LED Negative


Features:


Zinc alloy material: High conductivity; ensure accurate data transfer.
Chrome plated contacts: Can effectively prevent oxidation, with LED, it's easier to read at night Install:Easy to install on a door, exterior design coincided with the TM card reader is very sensitive.

1. Contact after chrome-plated, can effectively prevent oxidation.

2. With a reading card indicator, night card reader easier.(LED can be optional )
3. Can be easily installed on the iron gate.
4. The exterior design coincides with the TM card reader is very sensitive, credit card does not need to press hard.


iButton Probe Application:

1. Commercial cash registers

2. Fiscal Cash registers

3. Portable cash registers

4. POS

5. Ticket issuing terminals

6. Medical equipments

7. BankPOS

iButton Probe Features:

1.reading and writing Dallas key card.
2.Needn't link external power supply

Model: IB TM probe
Material: zinc alloy, chrome plated.
Properties: strong conductive properties.
Chromium plated can effectively avoid oxidation.

Dimensions: 13 * 22mm
Wire length: 150mm
It used for 1990, 1991, 1996, 1961 series products.
