Dual Interface USB RFID NFC Reader Writer ACR1281U-C1 for both Contactless Contact Smart Card

Availability:
Quantity:
Product Description

Dual Interface USB RFID NFC Reader Writer ACR1281U-C1 for both Contactless Contact Smart Card

Product Description

1.0 Introduction

ACR1281U-C1 DualBoost II  is the second generation of ACS’s ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.

The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.

1.0. Features

  • ·        USB 2.0 Full Speed Interface

    ·        CCID Compliance

    ·        Contactless Smart Card Reader:

    o   Read/write speed of up to 848 kbps

    o   Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    o   Supports ISO 14443 Part 4 Type A and B cards

    o   Built-in anti-collision feature (only one tag is accessed at any time)

    o   Supports extended APDU (max. 64 kbytes)

    ·        Contact Smart Card Reader:

    o   Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)

    o   Supports CAC (Common Access Card)

    o   Supports PIV (Personal Identity Verification Card)

    o   Supports microprocessor cards with T=0 or T=1 protocol

    o   Supports memory cards

    o   ISO 7816-compliant SAM slot

    ·        Application Programming Interface:

    o   Supports PC/SC

    o   Supports CT-API (through wrapper on top of PC/SC)

    ·        Built-in Peripherals:

    o   Two user-controllable LEDs

    o  User-controllable buzzer

    ·        USB Firmware Upgradability

1.0.  Typical Applications

  • e-Government

  • Mobile Banking & Payment

  • e-Healthcare

  • Access Control

  • Network Security

  • Public Key Infrastructure

  • e-Purse & Loyalty



Specification of ACR-1281U-c1


Dimensions

120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)

Weight

140 g

Compliance / Certifications

·        ISO 14443, ISO 7816, FIPS 201, PC/SC, CCID, CE, FCC, RoHS, USB Full Speed,Microsoft ® WHQL

Interface

USB Full Speed

Operating Distance

Up to 50 mm (depends on the tag type)

Supply Voltage

Regulated 5V DC

Supply Current

200mA (operating); 50mA (standby)

Operating Temperature

0-50 C

Operating Frequency

13.56 MHz

Smart Card Interface Support

·        Contact

ISO 7816 Class A, B and C (5V, 3V, 1.8V)

·      Contactless

  ISO 14443 Type A & B

Operating System Support

·        Windows®

·        Linux®

·        Mac OS®

·        Android™ 3.1 and above



Pictures of products

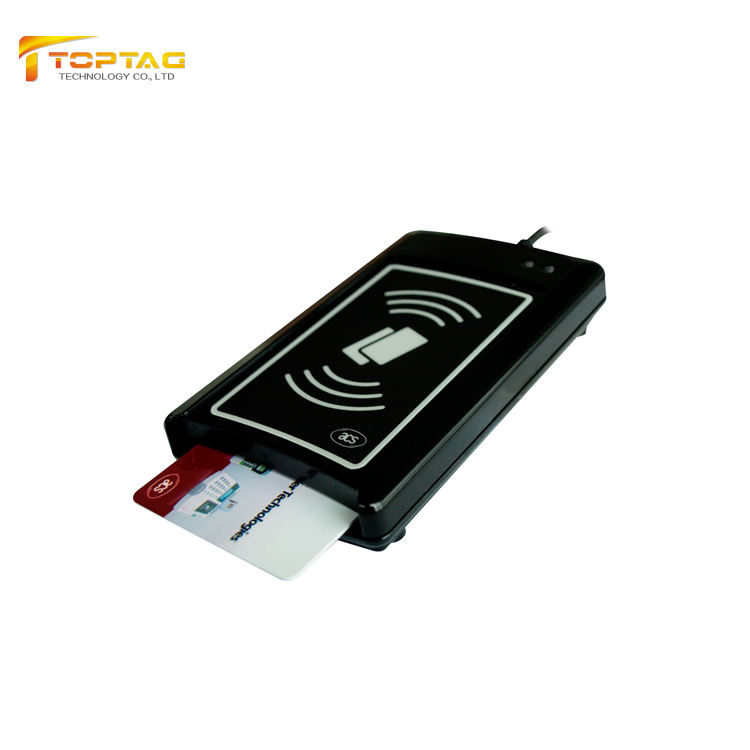

Dual Interface USB RFID NFC Reader Writer ACR1281U-C1 for both Contactless Contact Smart Card   Dual Interface USB RFID NFC Reader Writer ACR1281U-C1 for both Contactless Contact Smart Card   Dual Interface USB RFID NFC Reader Writer ACR1281U-C1 for both Contactless Contact Smart Card
