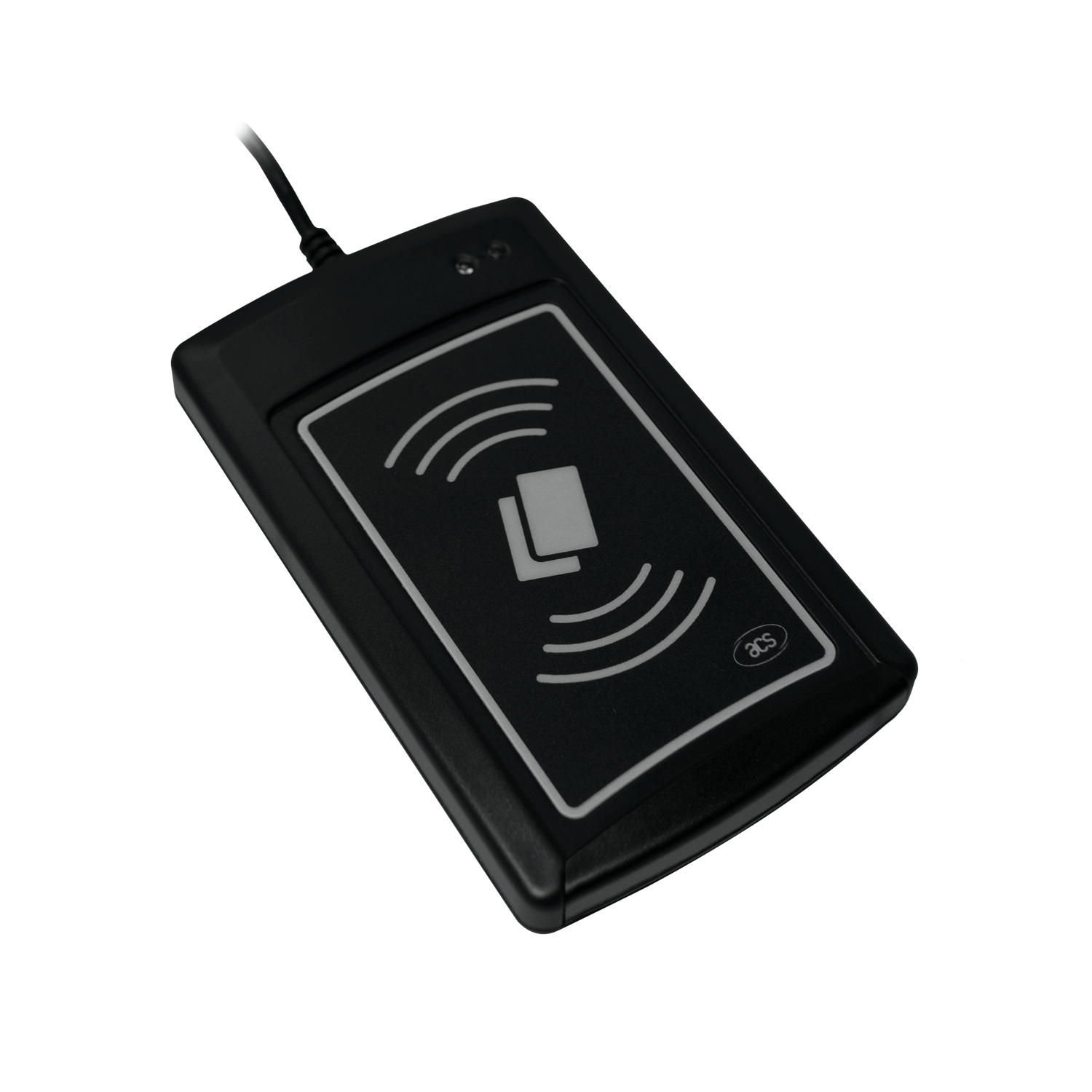

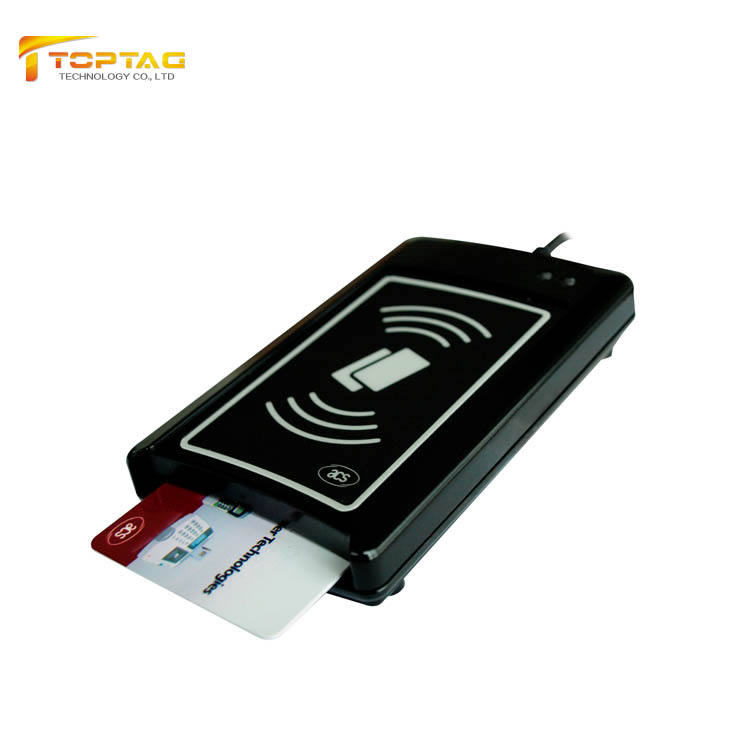

Dual Interface USB NFC + IC Chip Tablet PC ISO 7816 Smart Card Reader Writer ACR1281U-C1

Product Description
Product Description
Fast Delivery Dual Interface ISO14443 & ISO 7816 RFID Card Reader Acr1281U-C1
ACR1281U-C1 DualBoost II is the second generation of ACS’s ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that
combines many kinds of smart card applications in just a single card.

1.0 Introduction
The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication
for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides
intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in
the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless
With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1
DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card

1.0. Features
· USB 2.0 Full Speed Interface
· CCID Compliance
· Contactless Smart Card Reader:
Read/write speed of up to 848 kbps
o Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
o Supports ISO 14443 Part 4 Type A and B cards
o Built-in anti-collision feature (only one tag is accessed at any time)
o Supports extended APDU (max. 64 kbytes)
· Contact Smart Card Reader:
o Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
o Supports CAC (Common Access Card)
o Supports PIV (Personal Identity Verification Card)
o Supports microprocessor cards with T=0 or T=1 protocol
o Supports memory cards
o ISO 7816-compliant SAM slot
· Application Programming Interface:
o Supports PC/SC
o Supports CT-API (through wrapper on top of PC/SC)
· Built-in Peripherals:
o Two user-controllable LEDs
o User-controllable buzzer
· USB Firmware Upgradability

1.0. Typical Applications
Mobile Banking & Payment
Access Control
Network Security
Public Key Infrastructure
e-Purse & Loyalty
Place of Origin
Brand Name
Item name
ACR1281U-C1 DualBoost II USB Dual Interface
120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
140 g
USB Full Speed
Operating Frequency
Working temperature
Smart Card Interface Support
Contact & contactless
Built-in Peripherals:
Two user-controllable LEDs User-controllable buzzer
CCID Compliance
Packing & Delivery
1 set/box, 100box/carton ISO14443 & ISO 7816 RFID Card Reader Acr1281U-C1
