Dual Boost II NFC/ IC Chip RFID Card Reader and Writer ACR1281U-C1

Availability:
Quantity:
Product Description

Dual Boost II NFC/ IC Chip RFID Card Reader and Writer ACR1281U-C1

Product Description

Dual Boost II NFC/ IC Chip RFID Card Reader and Writer ACR1281U-C1

1. Introdcution of ACR1281U-C1 reader
   ACR1281U-C1 DualBoost II is the second generation of ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card; it can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards via automated fare collection in public transport. It provides the perfect complement to the "All-in-one Card" concept that combines many kinds of smart card applications in just a single card.
   The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes the use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combo cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.
    With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.


Features

Compliance with PC/SC for contact, contactless and SAM card interfaces.
  Compliance with CCID.
  Supports major contactless smart cards that conform to ISO14443 Type A and B.
  Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type).
Read/write speed of up to 848 kbps for contactless interface.
  Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented).
  Supports extended APDU.
  Supports major contact smart cards that conform to ISO7816.
  Supports memory cards such as SLE5528, SLE5542, etc.
  Read/write speed of up to 344 kbps for contact interface.
  Durable landing type smart card connector.
  Built-in SAM card slot.
  Intelligent support for hybrid and combi cards.
  Firmware Upgradable.
  User-controllable monotone buzzer and LEDs.
  USB Full Speed (12 Mbps).


Dual Boost II NFC/ IC Chip RFID Card Reader and Writer ACR1281U-C1   Dual Boost II NFC/ IC Chip RFID Card Reader and Writer ACR1281U-C1


Typical Applications

   e-Government

     e-Banking and e-Payment

     e-Healthcare

     Transportation

     Network Security

     Access Control

     Loyalty Program


More Details

Dimensions

120.5 mm (L) x 72 mm (W) x 20.4 mm (H)

Weight

150g

Interface

USB 2.0 Full Speed

Operating Distance

Up to 50 mm (depends on the tag type)

Supply Voltage

Regulated 5 V DC

Supply Current

200mA (max); 100mA (normal)

Operating Temperature

0-50°C

Humidity

10 - 80 %

Operating Frequency

13.56MHz

Smart Card Interface Support

  • ISO14443 T=CL for ISO 14443 A & B Parts 1-4 compliant cards and T=CL Emulation for series, NFC reader mode

  • Extended APDU support

  • Memory card support is made upon request

Compliance/Certifications

Germany nPA certified, PC/SC, CCID, CE, FCC, RoHS Compliant, Microsoft WHQL: 2000, XP, Vista, 7

Operating System Support

  • Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7

  • Win 2003 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64

  • Mac

  • Linux

  • Android™ 3.1 and above

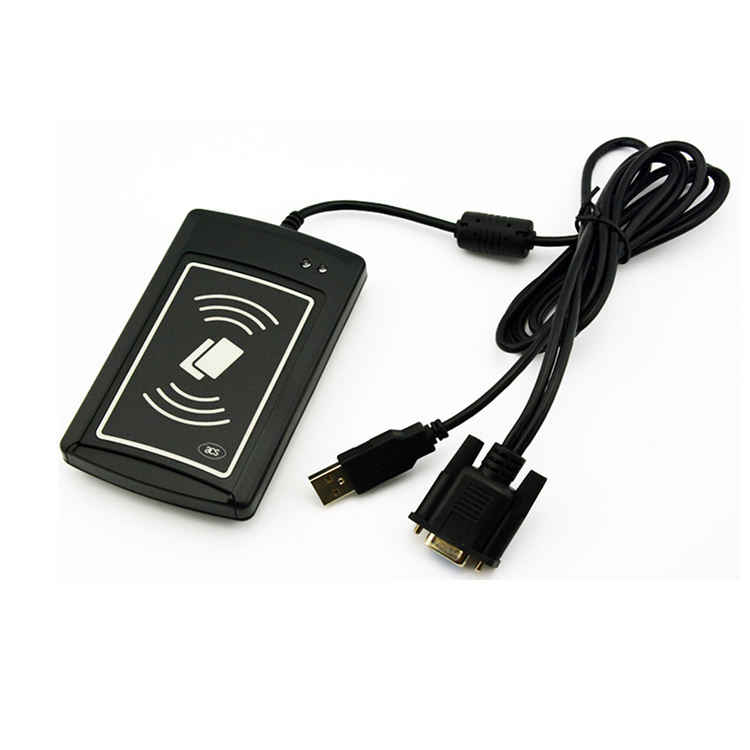

2.Product images
