ACR1281U-C1 RFID Contactless Smart Card Reader for E-banking and E-payment

Availability:
Quantity:
Inquire Add to Basket

Product Description

Product Description
ACR1281U-C1 RFID Contactless Smart Card Reader for E-banking and E-payment

Overview of ACR1281U-C1 Reader

ACR1281U-C1 DualBoost II is the second generation of ACS's ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.

The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.

Model
ACR1281U-c1

Size
120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight:
140g
USB Interface
Power Source
From USB port
Protocal
USB CCID
Speed
USB Full Speed (12 Mbps)
Connector Type
Standard Type A
Cable Length

2.0 m, Fixed
Contact Smart Card Interface
Protocol
T=0; T=1
Numbers of Slots
1 Full-sized Card Slot
Standard
ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V)


Contactless Smart Card Interface
Protocol
ISO 14443-4 Compliant CardT=CL
Standard

ISO 14443A & B Parts1-4
SAM Card Interface
Protocol
T=0; T=1
Number of Slots

1 Standard SIM-sized Card Slot
Standard
1 Standard SIM-sized Card Slot


Built-in Peripherals
LED
2 single-color: Red and Green
Buzzer
Monotone
Other Features

Firmware Upgrade
Supported

Certifications/Compliance
ISO 14443,ISO 7816,USB Full Speed,PC/SC,CCID,Microsoft® WHQL,CE,FCC,RoHS 2,REACH
Device Driver Operating System Support

Windows®
Linux®
MAC OS®
Solaris
Android™

Features

USB 2.0 Full Speed Interface
CCID Compliance
Contactless Smart Card Reader:
Read/write speed of up to 848 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Part 4 Type A and B cards and MF series
Built-in anti-collision feature (only one tag is accessed at any time)
Supports extended APDU (max. 64 kbytes)
Contact Smart Card Reader:
Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
Supports CAC (Common Access Card)
Supports PIV (Personal Identity Verification Card)
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards
ISO 7816-compliant SAM slot
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Built-in Peripherals:
Two user-controllable LEDs
User-controllable buzzer
USB Firmware Upgradability

Applications

Primary Applications
e-Government
Banking & Payment
Access Control
Network Security
e-Purse & Loyalty
Transportation


Detailed Images

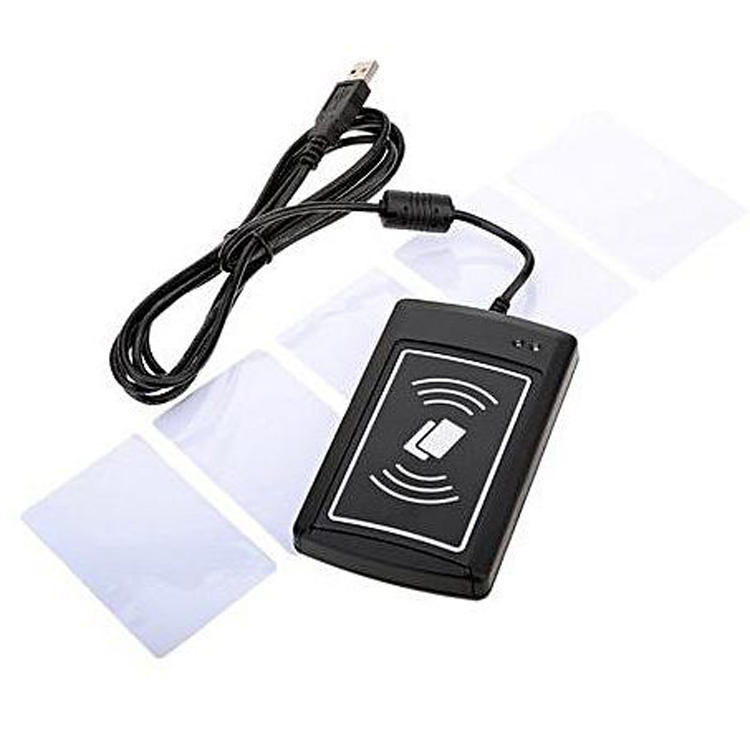

ACR1281U-C1 RFID Contactless Smart Card Reader for E-banking and E-payment  ACR1281U-C1 RFID Contactless Smart Card Reader for E-banking and E-payment  ACR1281U-C1 RFID Contactless Smart Card Reader for E-banking and E-payment
