ACR122U 13.56MHZ NFC reader smart card reader/ writer

Product Description



1. Introdcution of Cheapest ACR 122U reader


   The ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56 MHz contactless technology. It is the world’s first CCID-compliant contactless card reader/writer that follows both ISO 14443 and ISO 18092.



Typical Applications

   e-Government

     e-Banking and e-Payment

     e-Healthcare

    Transportation

    Network Security

    Access Control

    Loyalty Program

Universal Serial Bus Interface

Power sourceFrom USB

Speed12 Mbps (Full Speed)

Supply VoltageRegulated 5 V DC

Supply Current 200 mA (maximum); 50 mA (standby); 100 mA (normal)

Casing

Dimensions98 mm (L) x 65 mm (W) x 12.8 mm (H)

Weight70 grams

MaterialPolycarbonate (PC)

ColorPearl White

Antenna Size50 mm x 40 mm

Operating distanceUp to 50 mm (depending on tag type)

Certifications/Compliance

PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed

Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7

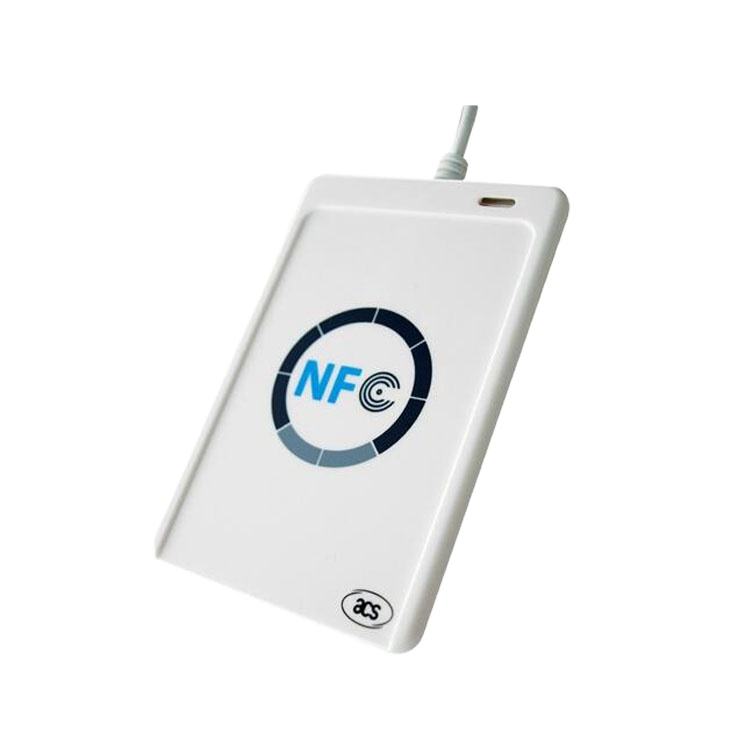

2.Product images of Cheapest ACR 122U reader
