2021 New Product ACR39U-NF PocketMate II Smart Card Reader USB Type C for Android

Availability:
Quantity:
Product Description

2021 New Product ACR39U-NF PocketMate II Smart Card Reader USD Type C for Android


2021 New Product ACR39U-NF PocketMate II Smart Card Reader USB Type C for Android


Product Description

2021 New Product ACR39U-NF PocketMate II Smart Card Reader USB Type C for Android

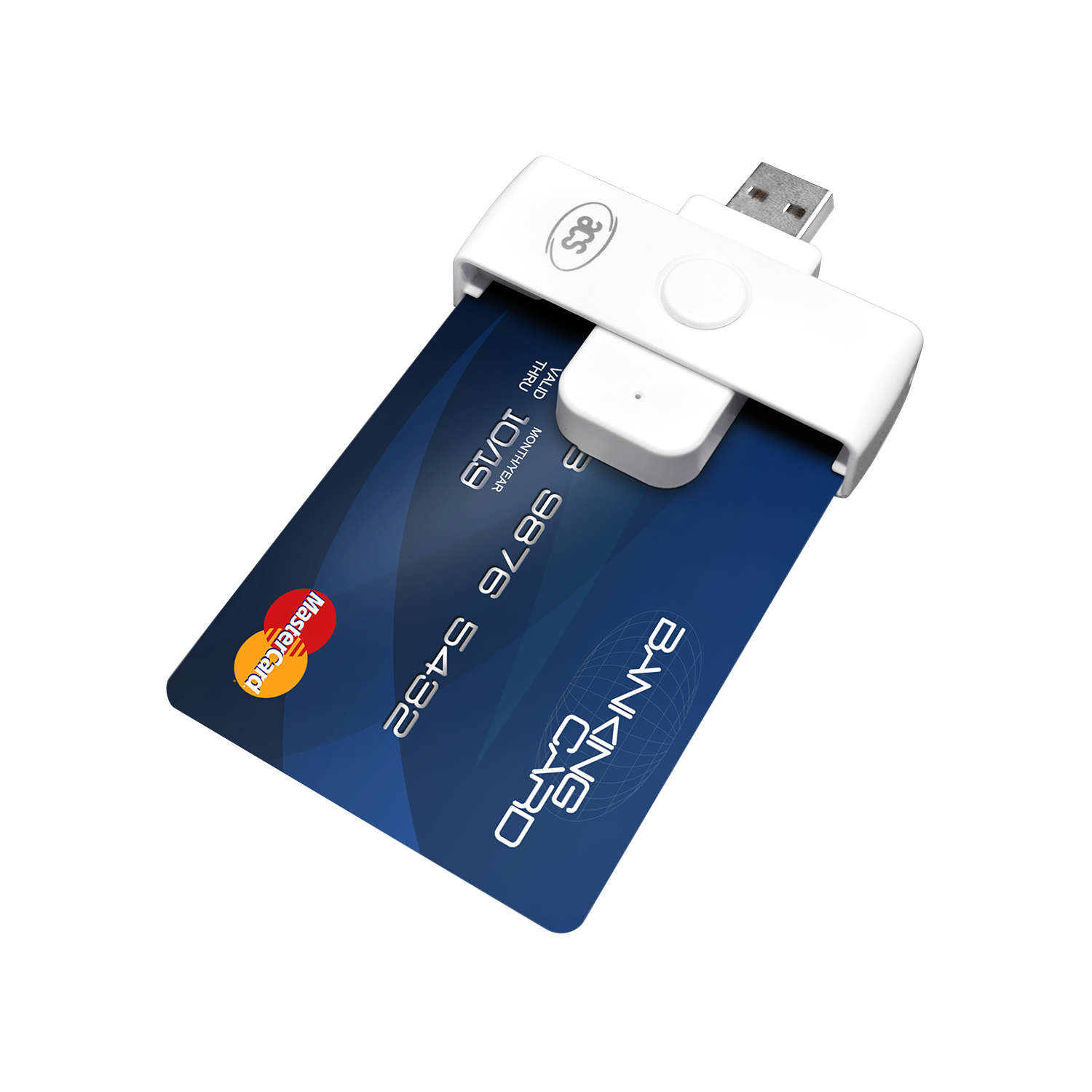

Overview of ACR39 USB Type C Reader


ACR39 PocketMate II with USB Type C Connector represents an  new paradigm.No larger than a USB stick, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides value and reliable functionality to meet your security needs.

ACR39U PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. It supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC) and SIPRNET Card. This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.

This USB Type-C connector version of ACR39U PocketMate II enables backwards compatibility and reversible use, along with all of the features mentioned for ACR39U series. ACR39U PocketMate II can easily be integrated in a computer-based or mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Solaris, and Mac OS®. In addition, ACR39U PocketMate II may now be used on mobile devices running on Android™ versions 3.1 and later.

With the evolution of ACR39U Pocketmate II to USB-Type C, there are now more opportunies for the next generation of your smart card solution.


Feature

USB 2.0 Full Speed Interface

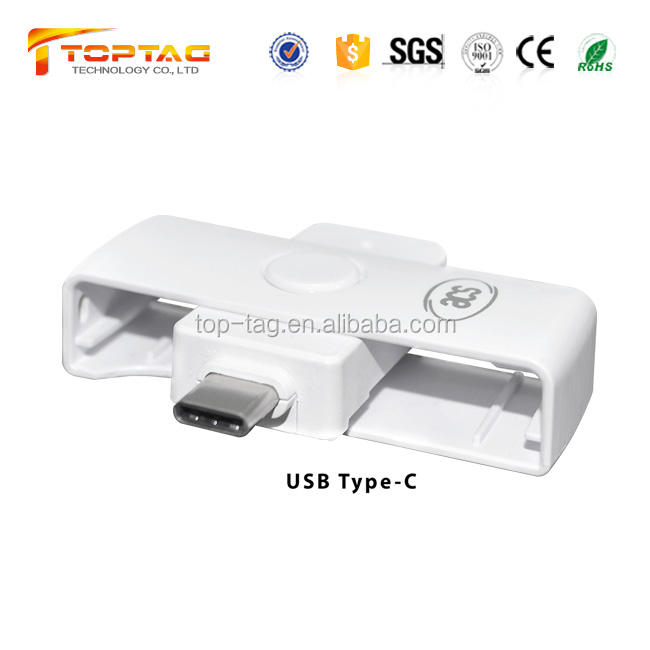

USB Type C Connector

Plug and Play – CCID support brings utmost mobility

Swivel Motion Design

Smart Card Reader:

Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

Supports CAC

Supports SIPRNET Card

Supports J-LIS Card

Supports microprocessor cards with T=0 or T=1 protocol

Supports memory cards

Supports PPS (Protocol and Parameters Selection)

Features Short-Circuit Protection

Application Programming Interface:

Supports PC/SC

Supports CT-API CT-API (through wrapper on top of PC/SC)

Supports Android™ 3.1 and later

Specification

Dimensions

58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H)Contact Smart Card Interface

Number of Slots

1 Full-sized Card Slot

Standard

ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol

T=0; T=1; Memory Card Support

Others

CAC, PIV, SIPRNET, J-LIS Smart Cards

Compliance / Certifications

EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1 (Contact), TAA (US), J-LIS (Japan), VCCI (Japan), PBOC (China), CE, FCC, WEEE, RoHS 2, REACH Microsoft® WHQL

Operating System Support

Windows®; Linux®; Mac OS®; Android™; Solaris


Application

e-Government

Banking & Payment

e-Healthcare

Network Security

Access Control

Public Key Infrastructure

e-Purse & Loyalty
