180 reader animal rfid reader 134.2 khz pet reader

Animal Microchip

RFID Animal Bio-glass Tube

1.4x8mm now is the smallest sized pet microchip, widely used for tagging fish, mice, etc such very small animals; while 2x12mm is the common sized and popularly used on the market for dog, cat, horse, etc. At so far, we just developed a new product, 1.4x8mm in FDX-A format, as far as we know that, 1.4x8mm could only be FDX-B format because of the big rfid chip's size, so, we now are the unique manufacturer who can supply FDX-A glass transponders at the smallest size 1.4x8mm!

For pet microchip used for animal identification(or tagging animals), there are 3 standard:

ISO11784/785 FDX-A, FDX-B and HDX.

Here are the size for different format:

FDX-A: 1.4x8, 1.5x8, 2x6, 2x8, 2x10, 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm

FDX-B: 1.4x8, 1.5x8, 2x6, 2x8, 2x10, 2x12, 3x13, 3.85x23, 3.85x32, 4x34mm

HDX:  2x12, 3x13, 3.85x23, 3.85x32, 4x34mm

In a word, RFID pet microchiptag is an easy solution for animal identification and tracking. Made of high quality Biocompatible glass, compaly with ISO11784/785 FDX A/B, HDX; our rfid glass tags are safety and could work with excellent performance, 5-8cm with our readers, or even longer upon readers' antenna and power.

Product Specification

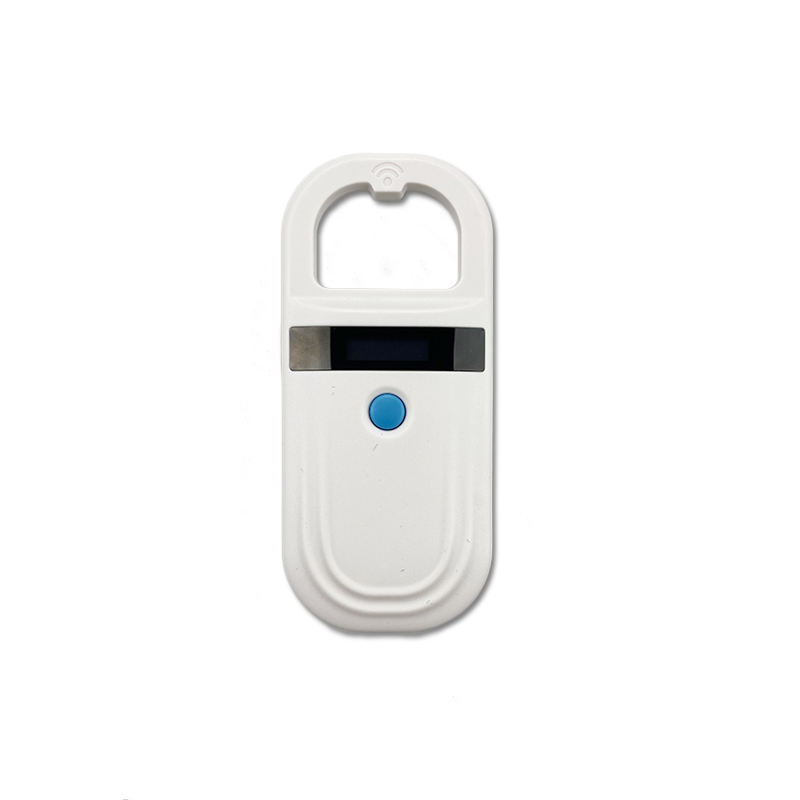

180 Reader  Specification

PROJECT                             PARAMETER
Model	PT180
Frequency	134.2Khz/125Khz
Reading standard	EMID,FDX-B(ISO11784/85)
Reading distance	2.12mm glass tube > 8cm 30mm animal ear tag > 20cm
Reading time	<100ms
Display	0.91 High brightness OLED  screen , buzzer
Battery	3.7V (lithium battery)
Memory	128 pieces of information
Connect	USB2.0,Wireless 2.4g,Bluetooth
Color	White
Language	English (customized)
Working Temperature	-10℃~50℃
Stock Temperature	-30℃~70℃
Package size	18.5cm×12cm×3cm
Weight	120g
