13.56mhz RFID USB NFC Reader Module Module ACM1252U-Z2

Availability:
Quantity:
Product Description

ACM1252U-Z2 Small NFC Reader Module 13.56mhz RFID

Product Description

1.0 Introduction

The ACM1252U-Z2 supports ISO 14443 Type A and B cards, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 30 mm (depending on tag type used). ACM1252U-Z2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.

It is PC/SC-compliant and firmware upgradeable. Its small size allows it to be integrated to compact machines. It can be used with a detachable micro-USB cable that allows it flexibility to be located far from the USB host interface.

Features


    • USB 2.0 Full Speed Interface

    • CCID Compliance

    • Contactless Card Support:

    • Application Programming Interface

    • USB Firmware Upgradability


1.0.  Typical Applications

  • e-Government

  • Banking & Payment

  • e-Healthcare

  • Access Control

  • Network Security

  • e-Purse & Loyalty

  • Transportation

Physical Characteristics of ACM1252U-Z2
Dimensions (mm) 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H)
Weight (g) 3.65 g
USB Interface of  ACM1252U-Z2
Protocol USB CCID
Connector Type Micro USB
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Detachable (Optional)
Contactless Smart Card Interface of ACM1252U-Z2 Module
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocol ISO14443-4 Compliant Cards, T=CL
ISO 18092, NFC Tags
FeliCa
Antenna 20 mm x 22 mm
Built-in Peripherals of ACM1252U-Z2 nfc module
LED 1 bi-color: Red and Green
Other Features of ACM1252U-Z2 nfc module
Firmware Upgrade Supported
Certifications/Compliance of ACM1252U-Z2 nfc module
Certifications/Compliance ISO 14443
ISO 18092
USB Full Speed
PC/SC
CCID
CE
FCC
RoHS 2
REACH
Microsoft® WHQL
Device Driver Operating System Support of ACM1252U-Y3 nfc module
Device Driver Operating System Support Windows®
Linux®
MAC OS®
Solaris
Android™

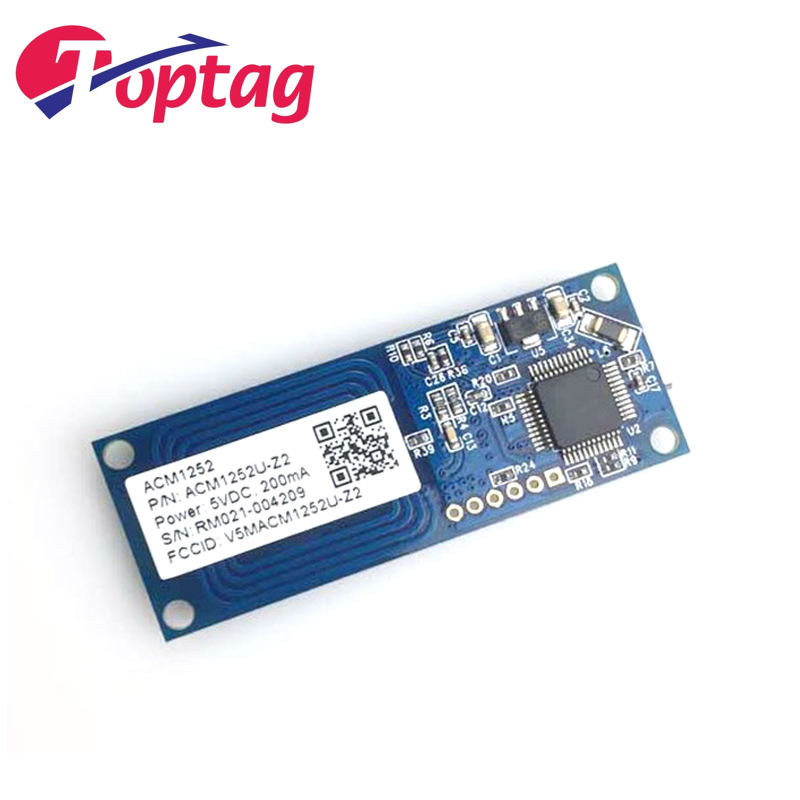

Pictures of products
13.56mhz RFID USB NFC Reader Module Module ACM1252U-Z2
