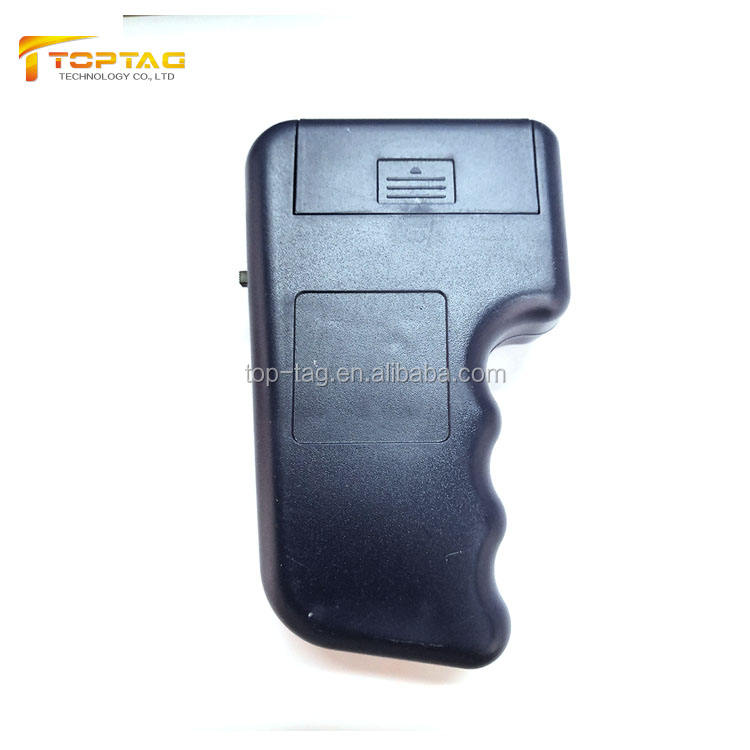

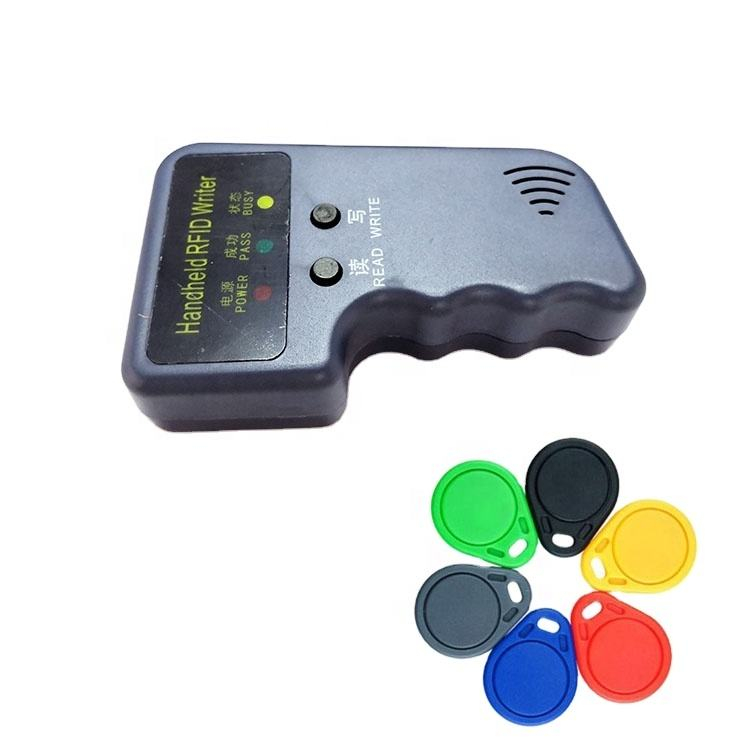

125KHz Clone ID Card Copier Smart Keyfob RFID Reader Writer

Welcome to Toptag!!

Professional Team Work & Production Line

7 days 24 hours After Sales Service

"Quality is Our Culture"

125KHz Clone ID Card Copier Smart Keyfob RFID Reader Writer

Parameters

1. Frequency: 125Khz

2. Power: 2 batteris of No.7, can be copied 20000 times

3. Distance: ≤25mm (Keychain)

            ≤60mm (Card)

4. Size: 71mm×117mm×31mm

5. Indicator:Three indicator

6. Push button:Read button & Write button

7. Support Tag: 125Khz(EM4100,EM4200,TK4100 card or 26bits card

Supports writing T5577 card

User manual

1. Make sure the small No.7 battery connection effectively before use it

2. Installing the battery,switch On, Power Led should flash one second .

3. Placing a EM testing card in Reading Area , it can be copied .

4. Press Read Button, If Read oK Read Led should flash and Beep sounds.

5. Put a card should be written(such as a EM4305 or T5577 card ) , Press Write Button and keep press, about one second ,if hearing a beep means Copying succeed.

6. If want to write more card same ID ,repeat step 5

7. Switch Off for save Power.
