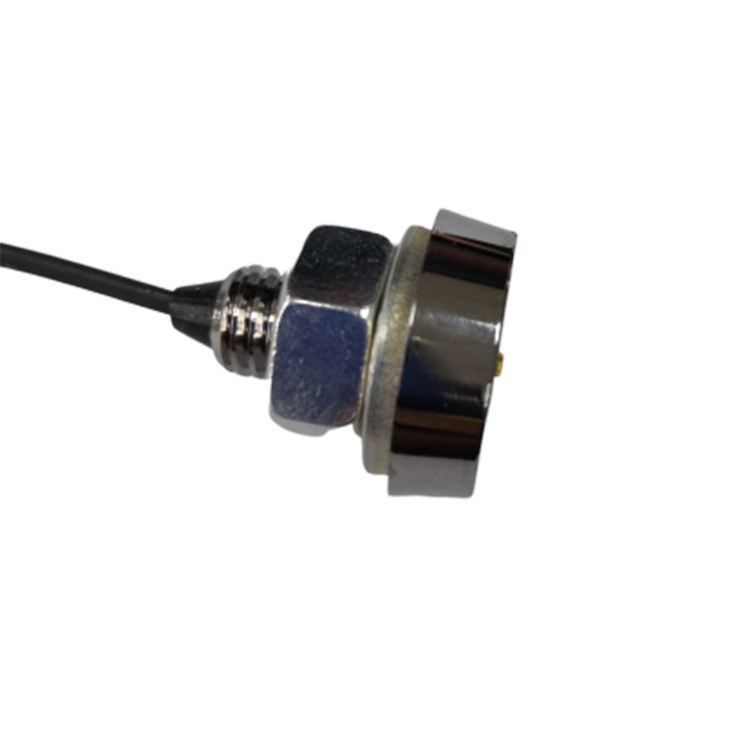

Model IB TM probe DS9092Shell chrome-plated zinc alloyData pole304 stainlesssteelLug platesilverplatingWire17*0.14 copper wire, 4mm tinplating.4 wiresLEDlight yellow (optional)SizeHeight:13mm, probe outer diameter: 22mm, external nut diameter: 25mm Weight24gPins:
Zinc alloy material: High conductivity; ensure accurate data transfer.
Chrome plated contacts: Can effectively prevent oxidation, with LED, it's easier to read at night Install:Easy to install on a door, exterior design coincided with the TM card reader is very sensitive.
1. Contact after chrome-plated, can effectively prevent oxidation.
2. With a reading card indicator, night card reader easier.(LED can be optional )
3. Can be easily installed on the iron gate.
4. The exterior design coincides with the TM card reader is very sensitive, credit card does not need to press hard.
iButton Probe Application:
1. Commercial cash registers
2. Fiscal Cash registers
3. Portable cash registers
5. Ticket issuing terminals
6. Medical equipments
iButton Probe Features:
1.reading and writing Dallas key card.
2.Needn't link external power supply
Model: IB TM probe
Material: zinc alloy, chrome plated.
Properties: strong conductive properties.
Chromium plated can effectively avoid oxidation.
Dimensions: 13 * 22mm
Wire length: 150mm
It used for 1990, 1991, 1996, 1961 series products.
