ACM1281U-C7 USB 13.56mhz nfc rfid reader module with sam slot for Vending machine

Availability:
Quantity:
Product Description

ACM1281S-C7 Serial Contactless Reader Module RS232 with SAM Slot

Product Description

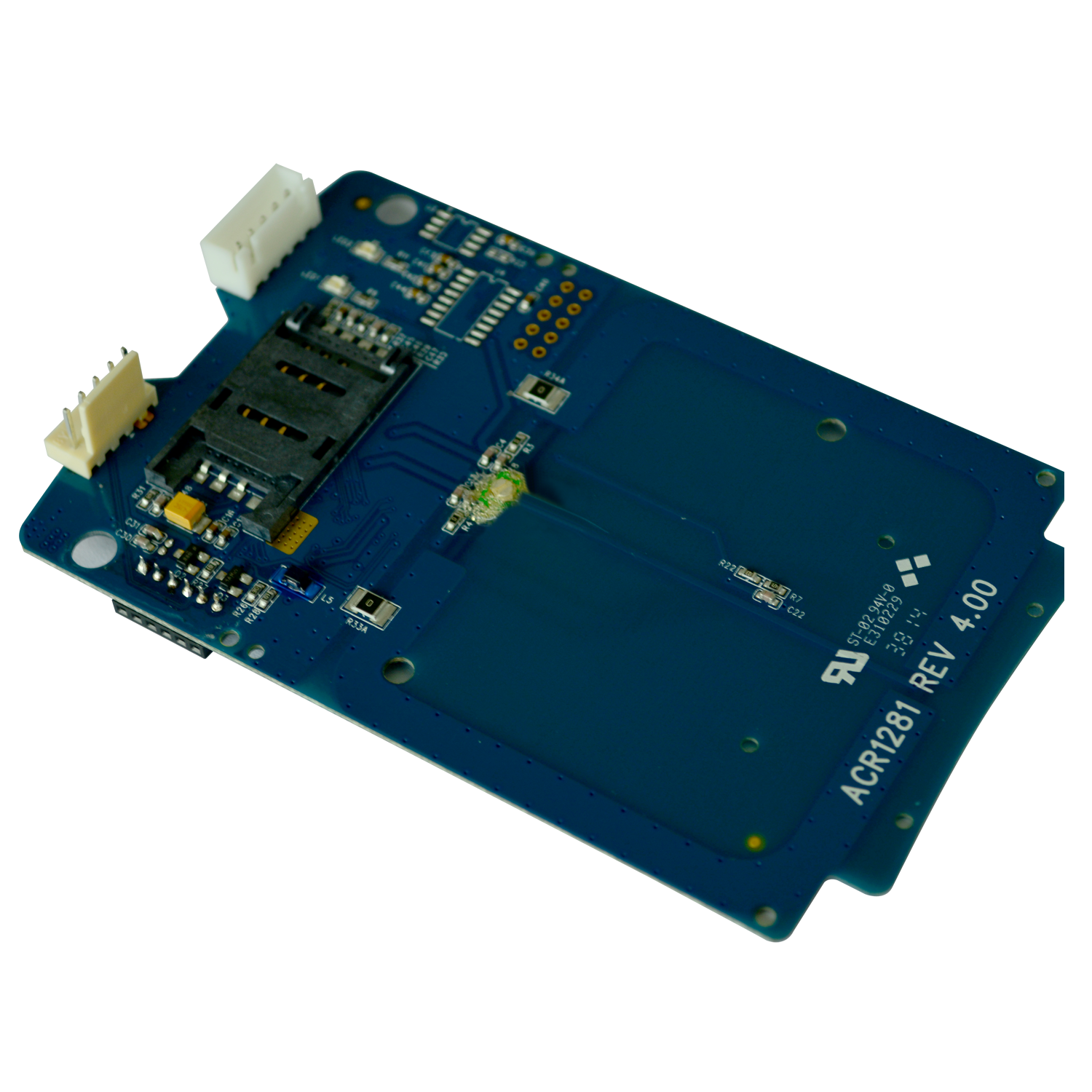

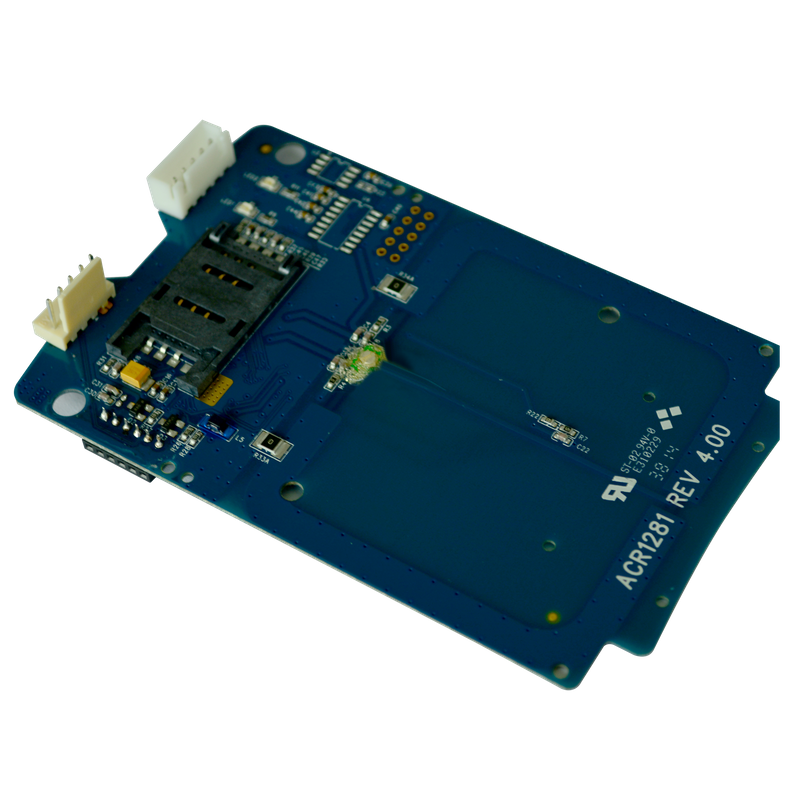

The ACM1281S-C7 Serial Contactless Reader Module with SAM Slot was designed based on 13.56 MHz technology for fast and easy integration into embedded systems. It is a plug-and-play device that does not require any driver installation.

ACM1281S-C7 supports ISO 14443 Parts 1-4 Type A and B cards, and MIFARE® Classic series. It has a card reading distance of up to 50 mm (depending on tag type). Moreover, it has an ISO 7816-compliant built-in SAM (Secure Access Module) slot, which can be used with a SAM card for high-level security in contactless transactions.

This reader module with integrated (on-board) antenna comes with an optional serial cable. It has additional features like USB firmware upgradability and extended APDU support. Lastly, ACM1281S-C7 makes use of high-speed communication for contactless cards (maximum of 848 kbps), which makes it suitable for highly demanding applications. Its RS232 serial interface can accommodate more devices, such as vending machine payment systems, kiosks, gaming machines, and other integrated systems, which have different serial ports.

1.0. Features


    • User-controllable bi-color LED

    • User-controllable buzzer

    • Contactless Interface:

    • SAM Interface:

    • Read/write speed up to 848 kbps

    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

    • Supports ISO 14443 Part 4 Type A and B cards

    • Built-in anti-collision feature (only 1 tag is accessed at any time)

    • Supports extended APDU (max. 64 kbytes)

    • ISO 7816-compliant SAM slot, Class A (5V)

    • Serial RS232 Interface

    • USB interface for power supply

    • CCID-like frame format (binary format)

    • USB Firmware Upgradeability

    • Smart Card Reader:

    • Peripherals:

    1.0.  Typical Applications

    • e-Government

    • Mobile Banking & Payment

    • e-Healthcare

    • Access Control

    • Network Security

    • Public Key Infrastructure

    • e-Purse & Loyalty


    Physical Characteristics of ACM1281S-C7 nfc module
    Dimensions (mm) 106.6 mm (L) x 67.0 g (W) x 16.0 g (H)
    Weight (g) 20.8 g
    Serial Interface of ACM1281S-C7 nfc module
    Protocol RS-232
    Connector Type DB-9 Connector
    Power Source Via USB cable
    Cable Length 1.5 m, Detachable (Optional)
    Contactless Smart Card Interface of ACM1281S-C7 nfc module
    Standard ISO 14443 A and B Parts 1-4
    Protocol ISO14443-4 Compliant Cards, T=CL
    Antenna 65 mm x 60 mm
    SAM Card Interface of ACM1281S-C7 nfc module
    Number of Slots 1
    Standard ISO 7816 Parts 1-3, Class A (5 V)
    Protocol T=0; T=1
    Built-in Peripherals
    LED 2 single-color: Red and Green
    Buzzer Monotone
    Other Features
    Firmware Upgrade Supported
    Certifications/Compliance of ACM1281S-C7 nfc module
    Certifications/Compliance ISO 7816 (SAM Slot)
    ISO 14443
    CE
    FCC
    RoHS 2
    REACH
    Device Driver Operating System Support of ACM1281S-C7 nfc module
    Device Driver Operating System Support Windows®
    Linux®

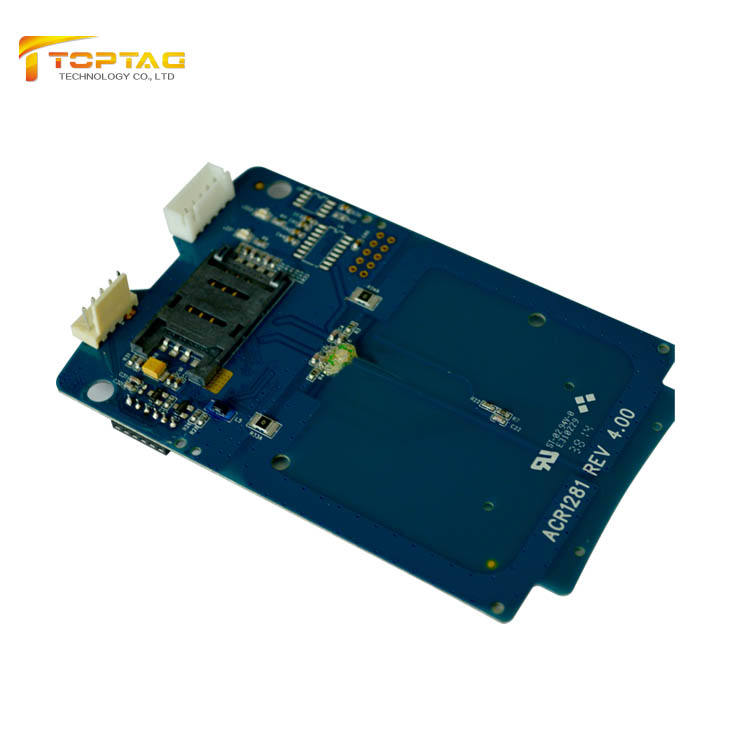

    Pictures of products
    ACM1281U-C7 USB 13.56mhz nfc rfid reader module with sam slot for Vending machine
